Author: Shanghai Xiazhao Valve Engineering Team
Published: May 7, 2026
Category: Industrial Steam Systems, Valve Technology, Process Optimization
To fully understand superheated steam performance and desuperheating pressure reduction systems, industrial engineers must clearly distinguish between saturated steam and superheated steam. These two steam types feature different thermodynamic characteristics, heat transfer behaviors, and industrial application scenarios. This chapter explains their definitions, heat enthalpy calculation, and essential differences for better steam system design.
Saturated steam refers to steam that maintains a dynamic equilibrium with its liquid water phase. In a closed container, the evaporation rate of liquid water equals the condensation rate of steam molecules. Its temperature and pressure present a one-to-one correspondence, meaning only one independent variable exists between pressure and temperature.
Main Characteristics of Saturated Steam:
• Easy to condense during pipeline transportation;
• Heat loss generates water droplets and wet steam;
• Contains tiny liquid droplets under actual working conditions;
• Steam dryness directly determines steam quality.
Superheated steam is generated by continuously heating dry saturated steam under constant pressure. Its temperature is visibly higher than the saturation temperature corresponding to its working pressure. Unlike saturated steam, superheated steam requires two independent parameters (pressure and temperature) to define its thermodynamic state.
Main Characteristics of Superheated Steam:
• No liquid droplets, completely dry steam;
• Lower density and lower heat transfer coefficient;
• No water hammer risk during pipeline operation;
• Stable physical properties for long-distance transportation.
2. Steam Heat Enthalpy Calculation
Steam energy is defined as total heat content, which is widely used for thermal calculation, valve selection, and desuperheater water injection calculation. The total heat formula is shown below:
• Q: Total steam heat (kJ or MJ);
• m: Steam mass flow (kg or t);

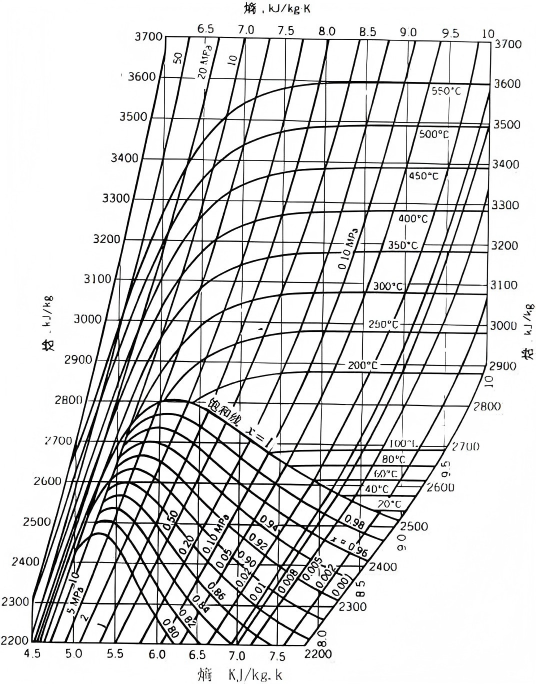

• h: Specific enthalpy of steam (kJ/kg), checked from steam thermodynamic tables.
The specific enthalpy consists of two parts: sensible heat and latent heat:
• Liquid enthalpy (h_f): Sensible heat required to heat water from 0°C to boiling point;
• Evaporation enthalpy (h_fg): Latent heat consumed when boiling water converts into steam.
3. Core Differences Between Saturated and Superheated Steam
In industrial steam pipe networks, superheated steam is preferred for transportation, while saturated steam is commonly used for production heating.
• Superheated steam for transportation: Low density, low heat loss, no condensation during long-distance delivery, effectively reducing pipeline loss and avoiding water accumulation.
• Saturated steam for process usage: Contains high latent heat, excellent heat transfer efficiency, suitable for heat exchangers, reactors, and conventional heating equipment.
Due to the mismatched parameters between high-temperature superheated steam and low-temperature process equipment, desuperheating and pressure reduction devices become essential to convert superheated steam into qualified saturated or near-saturated process steam.
1.Superior Heat Transfer Efficiency & Stability
• 100% dryness (no liquid water) ensures consistent heat transfer coefficients, eliminating fouling and corrosion on heat exchanger surfaces.
• Maintains stable thermal performance even across long pipelines, unlike saturated steam which condenses and loses efficiency.
• Ideal for high-temperature processes requiring precise, uniform heating without moisture contamination.
2.Minimal Transmission Losses
• Low viscosity and excellent flow properties reduce friction losses in pipelines.
• Supports extremely high flow velocities (up to 100 m/s) (vs. 20–40 m/s for saturated steam), enabling smaller pipe diameters and lower infrastructure costs.
• Significantly reduced heat loss during transport, making it ideal for long-distance distribution across large industrial complexes.
3.Greater Power Generation Capacity
• Higher enthalpy (total energy content) converts more efficiently to mechanical work in turbines, steam pumps, and other power machinery.
• Critical for power plants: superheating boosts Rankine cycle efficiency, increasing electricity output while reducing fuel consumption.
• Delivers stronger performance in high-load drive systems, enhancing overall plant productivity.
4.Eliminates Water Hammer Risk
• Zero liquid water content prevents damaging water hammer (hydraulic shock) in pipes, valves, and equipment.
• Protects system integrity, reduces maintenance, and extends service life of pipeline components.
• Ensures stable, safe operation—especially vital in high-pressure industrial networks.
Disadvantages of Superheated Steam
1.Mismatched Parameters for Most Process Equipment
• Boiler-generated superheated steam often operates at extreme conditions (e.g., 4.0 MPa, 400°C).
• Most downstream heat exchangers, reactors, and unit heaters are rated for low-to-medium parameters (e.g., 0.8 MPa, 170°C).
• Direct use causes overpressure/overtemperature, risking equipment failure or safety incidents.
2.Accelerated Equipment Degradation
• High temperature/pressure creates severe erosion, corrosion, and thermal stress on pipes, valves, and components.
• Requires expensive alloy materials (e.g., 12Cr1MoV) instead of standard carbon steel.
• Shortens service life, increases maintenance frequency, and raises operational costs.
3.Significant Energy Waste
• Direct injection into low-parameter equipment wastes excess superheat as unused heat (via radiation or exhaust).
• Reduces overall thermal efficiency and increases fuel/energy costs.
• Thermodynamically inefficient: high-grade energy misapplied to low-grade tasks.
4.Complex Control & Stability Challenges
• Strong pressure-temperature interdependency makes regulation difficult.
• Boiler load fluctuations directly disrupt steam quality, causing unstable process temperatures and inconsistent product quality.
• Requires sophisticated control systems to maintain stable downstream conditions.
Core Solution: Desuperheating & Pressure Reduction (DS/PR) Technology
To resolve superheated steam’s limitations while preserving its benefits, industrial systems rely on desuperheating and pressure reduction stations (DS/PR)—the critical interface between high-energy boiler output and process-ready steam.
The system performs two synchronized functions:
1.Pressure Reduction: Throttling high-pressure steam to target working pressure.
2.Desuperheating: Spraying atomized demineralized water to absorb excess heat, lowering temperature to saturation-plus levels.
1.Pressure Reduction Process
• Uses control valves (single or multi-stage) to throttle steam, converting pressure energy to velocity (and controlled heat loss).
• Single-stage: For pressure drops ≤ 2.0 MPa.
• Multi-stage (2–3 stages): For ΔP 2.0 MPa, limiting each stage to 1.0–1.5 MPa to avoid excessive velocity, erosion, and noise.
• Maintains stable outlet pressure within ±5% of setpoint.
2.Desuperheating Process (Water Injection)
• Industry standard: atomized water injection (most efficient and economical).
• High-pressure demineralized water/condensate is sprayed as fine droplets (<50 μm) into the steam stream.
• Droplets instantly vaporize, absorbing massive heat and lowering steam temperature.
• Critical: final temperature must stay 10–20°C above saturation to ensure dryness ≥98% and prevent water carryover.
Engineering Selection & Calculation Guide
Proper DS/PR system design requires precise thermochemical calculation. Below is the complete methodology used by Xiazhao Valve for industrial projects.
Pre-Selection Parameters (Must Confirm)
• Inlet (superheated): P₁ (MPa abs), T₁ (°C), Flow Q (t/h)
• Outlet (process): P₂ (MPa abs), T₂ (°C)
• Cooling water: Temperature t (typically 20–30°C)
• Design margins: 10–15% flow; 5–10% P/T regulation
Step 1: Pressure Reduction Sizing
A.Pressure Drop & Stage Selection
• ΔP ≤ 2.0 MPa: single-stage valve
• ΔP 2.0 MPa: multi-stage (2–3 stages)
• Before reduction: 20–40 m/s
• After reduction: 15–30 m/s
v=(Q×1000/3600×ρ×A)=Q/(3.6×ρ×π(d/2)²)
Where:
• Q = t/h, d = pipe diameter (m), ρ = steam density (kg/m³), v = velocity (m/s)
• Select DN matching pipeline
• Ensure Cv/Kv capacity meets maximum flow + margin
Step 2: Desuperheating Water Calculation
Based on enthalpy balance:
Q×h1+G×hω=(Q+G)×h2
Rearranged:
G=Q*\frac{h_1−h_2}{h_2−h_w}
• Q = inlet steam flow (kg/h)
• h₁ = inlet enthalpy (kJ/kg, from steam tables)
• h₂ = outlet enthalpy (kJ/kg, from steam tables)
• G = water injection rate (kg/h)
• h_w = water enthalpy ≈ 4.2 × t (kJ/kg)
• P₁ = 4.0 MPa, T₁ = 400°C, Q = 20 t/h
• P₂ = 0.8 MPa, T₂ = 170°C
• t = 25°C → h_w ≈ 105 kJ/kg
• From tables: h₁ = 3214.5 kJ/kg; h₂ = 2792.2 kJ/kg
G=20,000*(3214.5−2792.2)/(2792.2−105)≈3,280kg/h
With 10% margin: 3.6 t/h injection rate
• Atomization: droplet size ≤50 μm
• Material: 304/316SS for corrosion resistance
• Turndown ratio: ≥ 4:1 for load variation
• Quantity/size matched to G + margin
Critical Selection & Operation Guidelines
1. Pressure Safety: Set P₂ 0.05–0.1 MPa higher than equipment rating to ensure delivery.
2. Avoid Wet Steam: Maintain T₂ 10–20°C above saturation at P₂; dryness ≥98%.
3. Load Flexibility: Design for ±10% flow variation.
4. Water Quality: Use demineralized/condensate; install filtration to prevent nozzle clogging.
5. Material Compatibility: For T 350°C, use 12Cr1MoV; valves: high-temperature alloys.
Why Partner with Shanghai Xiazhao Valve?
We specialize in custom-engineered desuperheating and pressure reduction solutions for global industrial clients:
• Application-specific design for power, petrochemical, refining, and manufacturing
• High-performance control valves & multi-stage trim for extreme superheated conditions
• Precision atomization systems ensuring stable, dry steam at outlet
• Full thermodynamic calculation & sizing per IAPWS-IF97 standards
• Global material compliance: ASME, API, ANSI, GOST
• Lifecycle support: engineering, commissioning, maintenance
Superheated steam is a high-value energy source—powerful but demanding. Its unmatched advantages in transmission and power generation come with steep costs in equipment compatibility, efficiency, and maintenance. The key to safe, economical operation is proper desuperheating and pressure reduction: converting high-energy superheated steam into stable, process-ready thermal fluid.
By understanding these principles and applying rigorous engineering selection, industrial plants can maximize energy efficiency, extend equipment life, reduce operational risk, and lower total costs.
Need a custom DS/PR solution?
Contact Shanghai Xiazhao Valve’s engineering team for a free system assessment and sizing calculation tailored to your steam parameters.
Stay tuned for our next article: Advanced Control Strategies for Superheated Steam Systems & Case Studies in Energy Savings.
SEO Keywords (for Google Indexing)
saturated steam vs superheated steam, superheated steam advantages disadvantages, desuperheating and pressure reduction, steam desuperheating calculation, pressure reducing valve for superheated steam, industrial steam system optimization, steam conditioning valve, water spray desuperheater, steam energy efficiency, industrial boiler steam solutions, Xiazhao Valve desuperheating station
3 Groups of Common Working Condition Selection Calculation Tables
The following tables cover three common industrial superheated steam desuperheating and pressure reduction working conditions, including inlet/outlet parameters, calculation results, and recommended equipment specifications, which can be directly referenced for engineering design.
Table 1: Working Condition 1 (Medium-Pressure, Medium-Flow)
Parameter Type |
Specific Parameters |
Calculation Results |
Recommended Specifications |
Inlet Superheated Steam |
P₁=3.0MPa (abs), T₁=350℃, Q=15t/h |
- |
- |
Outlet Target Steam |
P₂=0.6MPa (abs), T₂=160℃ |
- |
- |
Cooling Water |
t=25℃, h_w≈105kJ/kg |
- |
- |
Pressure Drop (ΔP) |
2.4MPa |
ΔP2.0MPa, multi-stage (2-stage) pressure reduction |
2-stage pressure reducing valve |
Enthalpy Value (from steam table) |
h₁=3115.7kJ/kg, h₂=2756.8kJ/kg |
- |
- |
Water Injection Rate (G) |
- |
Calculated G≈2180kg/h; with 10% margin, G=2.4t/h |
Nozzle: 304SS, droplet size≤50μm |
Valve Specification |
- |
PN≥3.0MPa, DN matching pipeline |
PN4.0MPa, DN80 (adjustable according to actual pipeline) |
Table 2: Working Condition 2 (High-Pressure, High-Flow)
Parameter Type |
Specific Parameters |
Calculation Results |
Recommended Specifications |
Inlet Superheated Steam |
P₁=5.0MPa (abs), T₁=420℃, Q=30t/h |
- |
- |
Outlet Target Steam |
P₂=1.0MPa (abs), T₂=180℃ |
- |
- |
Cooling Water |
t=28℃, h_w≈117.6kJ/kg |
- |
- |
Pressure Drop (ΔP) |
4.0MPa |
ΔP2.0MPa, multi-stage (3-stage) pressure reduction |
3-stage pressure reducing valve |
Enthalpy Value (from steam table) |
h₁=3271.9kJ/kg, h₂=2834.8kJ/kg |
- |
- |
Water Injection Rate (G) |
- |
Calculated G≈5230kg/h; with 10% margin, G=5.75t/h |
Nozzle: 316SS, droplet size≤50μm, 2 nozzles |
Valve Specification |
- |
PN≥5.0MPa, DN matching pipeline |
PN6.3MPa, DN100 (adjustable according to actual pipeline) |
Table 3: Working Condition 3 (Low-Pressure, Small-Flow)
Parameter Type |
Specific Parameters |
Calculation Results |
Recommended Specifications |
Inlet Superheated Steam |
P₁=1.6MPa (abs), T₁=280℃, Q=5t/h |
- |
- |
Outlet Target Steam |
P₂=0.4MPa (abs), T₂=150℃ |
- |
- |
Cooling Water |
t=22℃, h_w≈92.4kJ/kg |
- |
- |
Pressure Drop (ΔP) |
1.2MPa |
ΔP≤2.0MPa, single-stage pressure reduction |
Single-stage pressure reducing valve |
Enthalpy Value (from steam table) |
h₁=3034.4kJ/kg, h₂=2748.7kJ/kg |
- |
- |
Water Injection Rate (G) |
- |
Calculated G≈480kg/h; with 10% margin, G=0.53t/h |
Nozzle: 304SS, droplet size≤50μm |
Valve Specification |
- |
PN≥1.6MPa, DN matching pipeline |
PN2.5MPa, DN50 (adjustable according to actual pipeline) |
Note: All calculation results are based on the enthalpy balance formula and steam thermophysical properties table, and the design margin is 10%. The recommended specifications can be adjusted according to the actual on-site pipeline size and equipment requirements. For customized calculation, please contact Shanghai Xiazhao Valve engineering team.
