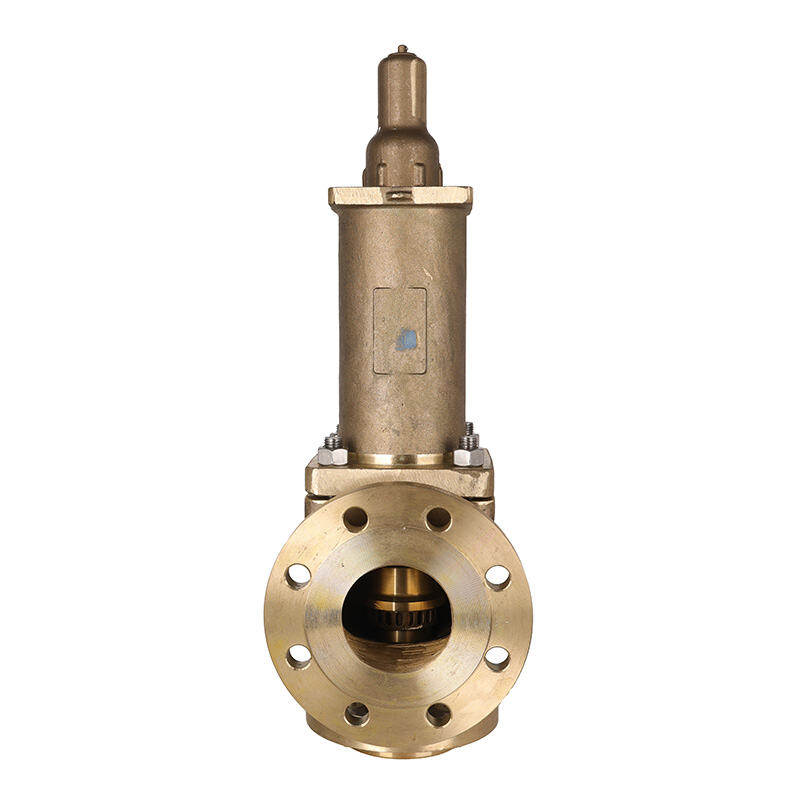

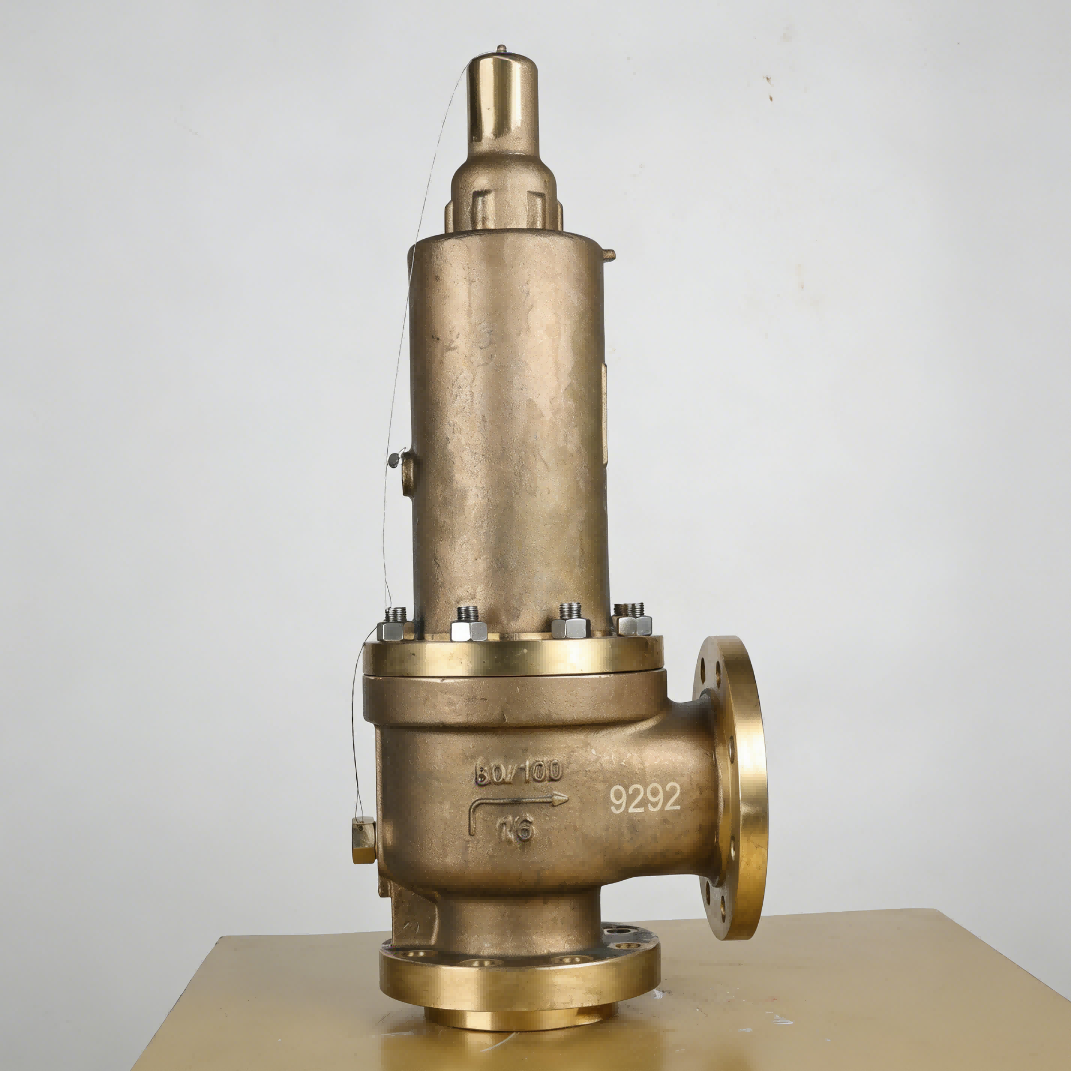

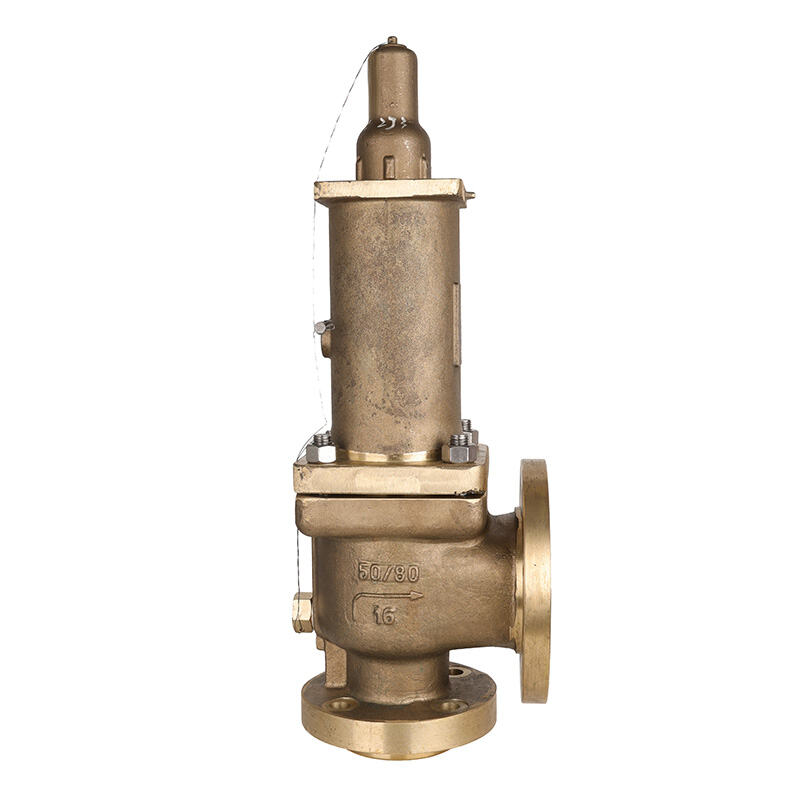

Xiazhao Sea Water Safety Valve 50mm×80mm PN16 | Duplex SS/Aluminum Bronze | Ultimate Corrosion Protection for Marine & Desalination

Fed up with seawater corroding your safety valve in 6 MONTHS? 😤 Xiazhao Seawater Safety Valve is engineered to beat chloride corrosion – built with C95800 aluminum bronze & 2205/2507 duplex steel for maximum durability. Size 50×80 PN16, fully customizable flanges (ASME/JIS/DIN) to fit global shipyards & offshore projects. Key parts: 2205 SS + Inconel X-750 spring = 3× LONGER service life & 60% LOWER maintenance costs! 💡 Pro Tip: Clean pipeline debris before installation to avoid leaks. Click now – see why top shipyards choose Xiazhao for seawater protection!

Why Seawater Needs a Special Safety Valve? Don’t Let Corrosion Ruin Your Project!

In marine engineering, chloride corrosion is the #1 killer of metal equipment – no exceptions. Ordinary carbon steel or 304/316 stainless steel? They’ll pit, crack, and fail in MONTHS, not years.
Your safety valve is the last line of defense for your pressure system. A corroded, stuck, or leaking valve means:
● Catastrophic overpressure explosion risk
● Seawater backflow & costly system contamination
● Frequent shutdowns, replacements, and lost revenue
Xiazhao Seawater Safety Valves – Built for the Ocean, Engineered to Outlast Corrosion. We don’t just make valves – we solve your seawater pain points.

Core Advantages: Why Xiazhao Stands Out from the Rest

Advantage 1: Military-Grade Corrosion Resistance – Beat Seawater Chlorides for 10+ Years
Tired of replacing valves every 6 months? Our premium materials are designed to survive the harshest marine environments:

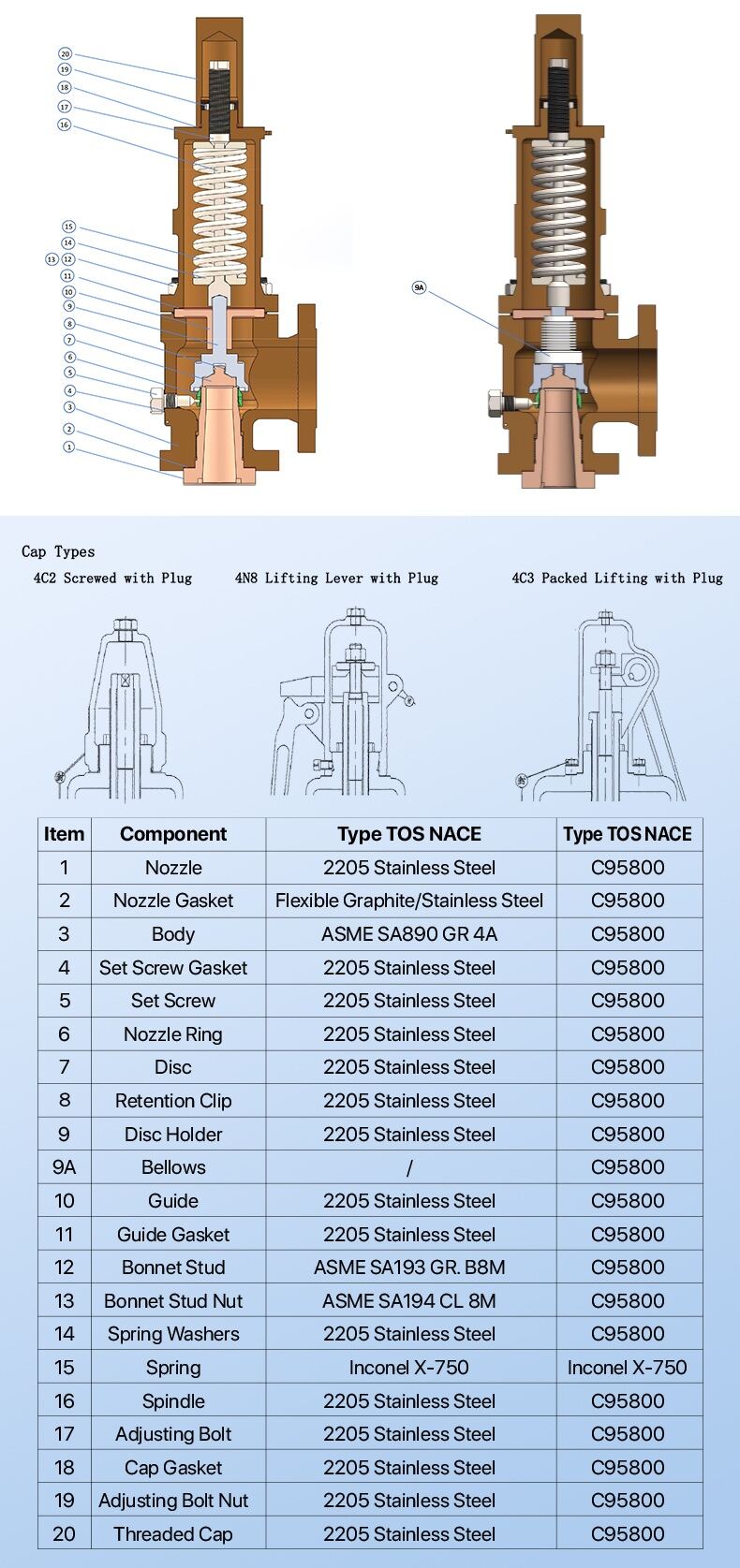

Component Materials (Based on Your Drawings):

Your Gain: Every part touching seawater is corrosion-shielded – guaranteed 10+ years of reliable service. No more frequent replacements, no more unexpected failures.

Advantage 2: Global Flange Standards – One Valve, Worldwide Fit
Your Pain: Imported equipment needs ASME, domestic needs GB, European projects need DIN – mismatched flanges = wasted time, money, and delays.
Our Solution: One Xiazhao valve, all global standards – no more stocking multiple versions:
● ASME B16.5 (US, Middle East projects)
● JIS B2220 (Japan, Asian ships – perfect for shipyards)
● DIN EN 1092 (Europe, offshore platforms)
● GB/T 9119 (Domestic projects – seamless integration)
Your Gain: Simplify procurement, cut inventory costs, and get a valve that fits your project – anywhere in the world. We confirm drawings before shipping, so you never get a misfit.

Advantage 3: Precision Design – Zero Leaks, Maximum Safety
In seawater, even a tiny leak spells disaster. That’s why we build our valves to strict global standards:
● Design Standard: API 526 – accurate flow area, reliable pressure relief every time
● Seal Standard: API 527 – bubble-tight shutoff (zero leakage in closed position)
Optional Bellows: For toxic media or backpressure-prone systems, add C95800 or 2205 bellows to isolate the spring from seawater – no corrosion, no external leaks, total peace of mind.
Bonnet Guide (Choose Wisely!):
● 4C2 Screwed Cap (HIGHLY RECOMMENDED for Seawater): Fully enclosed, locks out external corrosion – the best choice for long-term seawater use.
● 4N8 Lifting Lever: For steam/gas only – manual test capability, but NOT for seawater (leak risk + corrosion).
● 4C3 Packed Lifting Lever: For volatile media – use cautiously in seawater (opt for 4C2 if possible).

Advantage 4: Precise Pressure Control & Quick Reset – No Wasted Media, No Valve Damage
● Spring: Inconel X-750 nickel-based alloy – corrosion-resistant, temperature-stable, and built to last.
● Set Pressure Accuracy: ±3% – pinpoint control for your PN16 system, no misfires, no underperformance.
● Optimized Trim: Fast reset after relief – cuts media loss, reduces valve seat erosion, and extends service life.

Typical Applications: Where Xiazhao Shines

Our TOS Series seawater safety valves are trusted in the harshest marine and offshore environments – here’s where they deliver:

Critical Installation Tip: Clean Pipelines = Longer Valve Life

Your Xiazhao valve has precision-lapped seals – even tiny debris (welding slag, rust, sand) can damage them, causing leaks and early failure. Follow these steps for maximum reliability:
1. Thoroughly clean or blow out pipelines before installation – remove all debris.
2. Check flange faces for scratches or damage – ensure gaskets are aligned correctly.
3. Remove the valve during hydrostatic testing (use a blind flange) – protect internal parts from test media debris.
4. Start up slowly – gradually increase pressure and check for leaks.
Do this, and your Xiazhao valve will deliver 10+ years of trouble-free service.

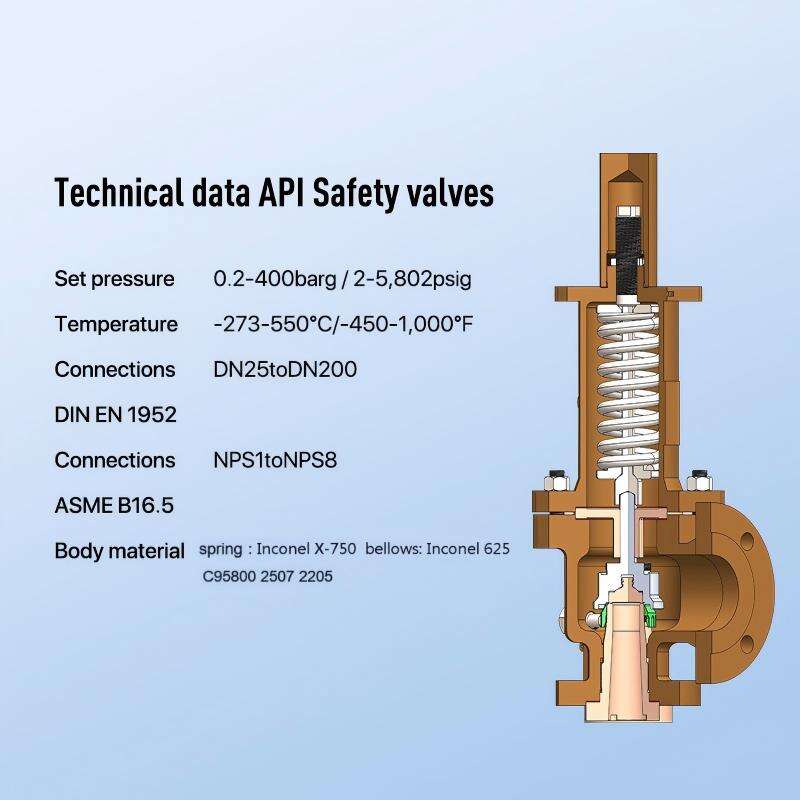

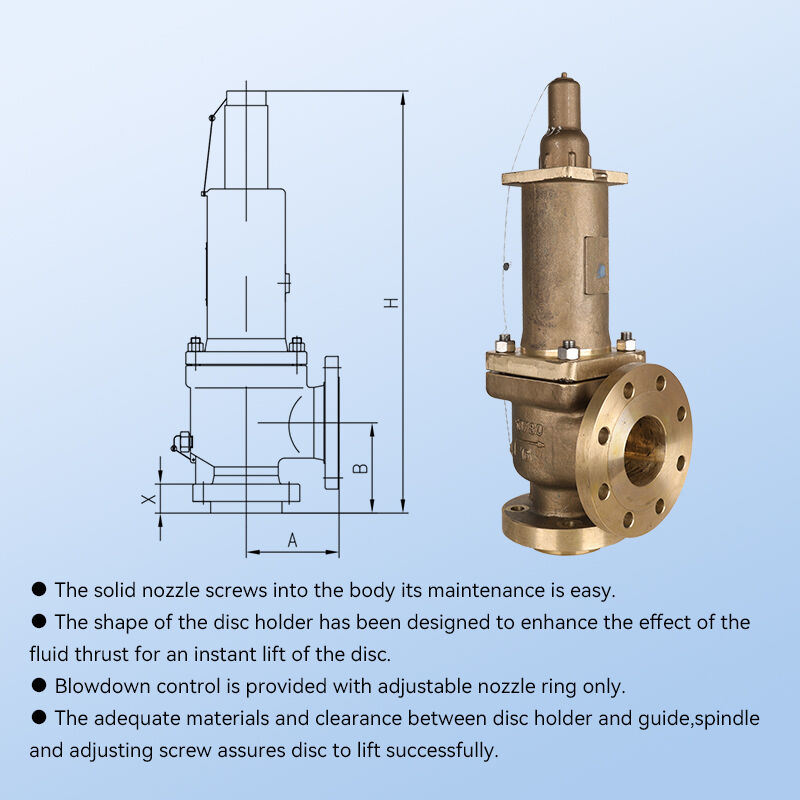

Dimensions & Specifications (At a Glance)

Why Xiazhao? We Solve Your Seawater Valve Pain Points

Technical Support & Global Service – We’ve Got Your Back

● Pre-order drawing confirmation: We check flange standards, dimensions, and set pressure – no mistakes.
● Global logistics: Optimized sea/air freight to any port worldwide – on time, every time.
● Technical support: Remote installation guidance or on-site service (if needed) – we help you get it right.

Ready to Stop Corrosion? Take Action Now!

If your project faces these challenges, Xiazhao is your solution:

● Severe seawater/brine corrosion – ordinary valves fail too fast
● Marine/offshore projects needing multi-standard flanges
● Strict API 526/527 & NACE compliance requirements
● Need long-term reliability with Inconel X-750 springs

Contact Xiazhao Valve Technical Department today!

Let our TOS Series seawater safety valves protect your marine assets – with 10+ years of corrosion-free performance, zero leaks, and peace of mind.
