Pilot-Operated Safety Valve—Modulating DIN
Pilot-Operated Safety Valve—Modulating DIN
Pilot-Operated Safety Valve—Modulating DIN
Pilot-Operated Safety Valve—Modulating DIN
Pilot-Operated Safety Valve—Modulating DIN

Pilot-Operated Safety Valve—Modulating DIN

Get a Quote

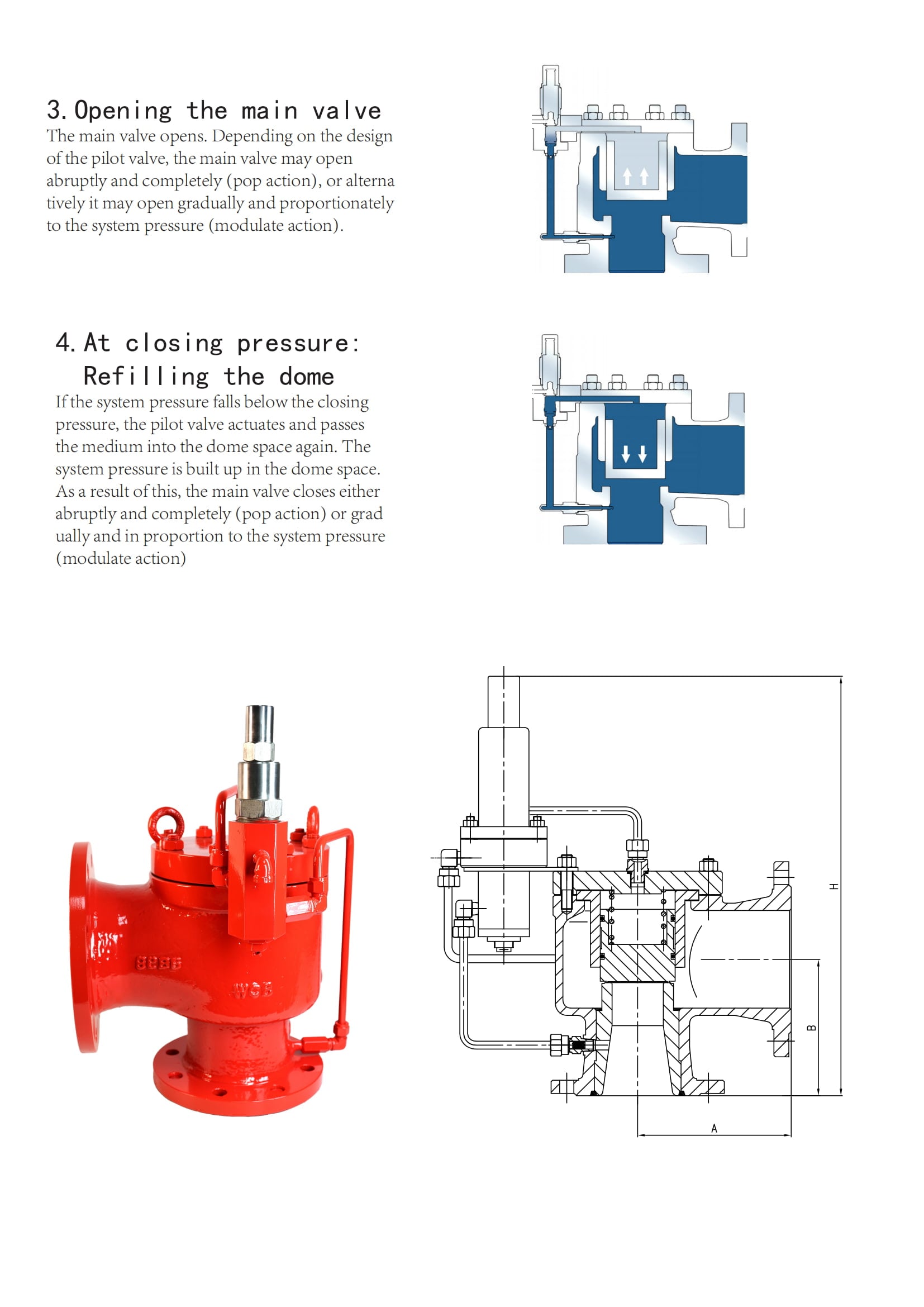

TOXD-4C5-01-25-1F2 -1.5F2 001-1(1)_00 (2).jpgTOXD-4C5-01-25-1F2 -1.5F2 001-1(1)_01 (2).jpgTOXD-4C5-01-25-1F2 -1.5F2 001-1(1)_02 (2).jpgTOXD-4C5-01-25-1F2 -1.5F2 001-1(1)_03.pngTOXD-4C5-01-25-1F2 -1.5F2 001-1(1)_04 (2).jpg

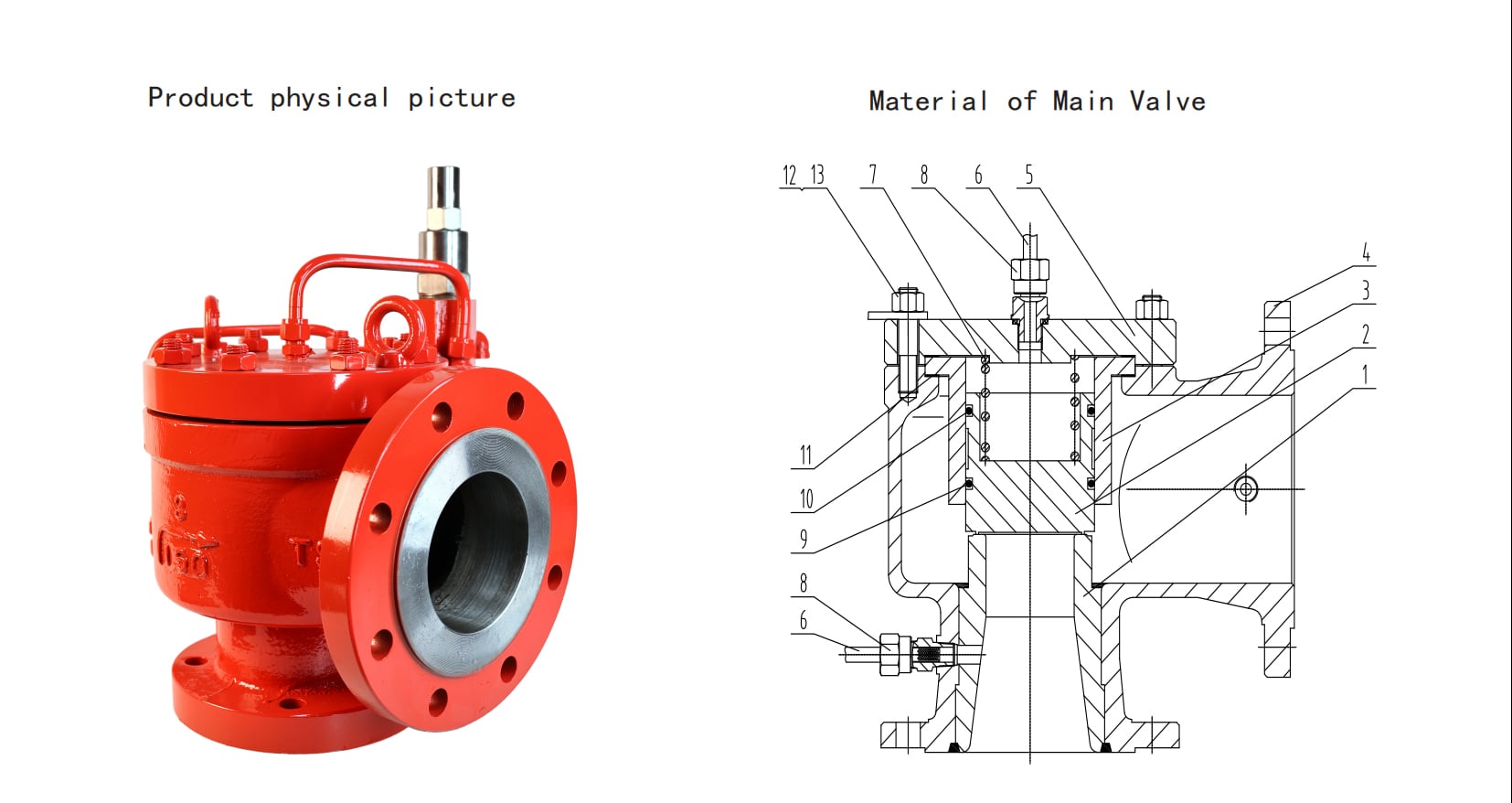

Pilot operated pressure relief valve Materials

Table No.1

Ref.No Part Name Sign of Materials
C S SM SL L CM
1 Nozzle SS316 SS316 SS316 SS316L SS316 Monel
2 Disc SS316+F46 SS316+F46 SS316+F46 SS316L+F46 SS316+F46 Monel+F46
3 Guide SS316 SS316 SS316 SS316L SS316 Monel
4 Body WCB CF8 CF8M CF3M LCB WCB
5 Plate A105 SS304 SS316 SS316L SS316 Monel
6 Dipper Tube SS316 SS316 SS316 SS316L SS316 SS316L
7 Spring Inconel X-750 Inconel X-750 Inconel X-750 Inconel X-750 Inconel X-750 Inconel X-750
8 Joint SS304 SS316 SS316 SS316L SS304 SS316L
9 Seal Ring Fluororubber Fluororubber Fluororubber Fluororubber Fluororubber Fluororubber
10 Seal Ring Fluororubber Fluororubber Fluororubber Fluororubber Fluororubber Fluororubber
11 Sealing gasket PTFE PTFE PTFE PTFE PTFE PTFE
12 Bolt A193-B7 A193-B8 A193-B8 A193-B8 A193-B8 A193-B7
13 Nut A194-8 A194-8 A194-8 A194-8 A194-8 A194-8

The information contained herein is subiject to change without notice.
