Xiazhao Valve Threaded Seawater Safety Valve 1/2" - 2" | Google Promotion Special Copy

Main Image Suggested Copy (Image Watermark/Label)

✅ Thread Size: 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2"

✅ Thread Standard: NPT / BSPP / BSPT Customizable

✅ Material Options: C95800 Aluminum Bronze | 2205 Duplex Steel | 2507 Super Duplex Steel

✅ Application: Seawater Cooling System | Marine Pipeline | Offshore Platform Instruments | High-Corrosion Chemical Industry

✅ Component Materials: 2205 SS / C95800 / Inconel X-750

✅ API 526 Design Standard | NACE Compatible

✅ Bonnet Type: 4C2 Closed Type (Recommended for Seawater)

Introduction (Product Snippet - Key to Attract Clicks)

Can't find a corrosion-resistant safety valve for small-bore seawater pipelines? Xiazhao Valve Threaded Seawater Safety Valve is specially designed for 1/2" to 2" small-bore seawater systems. Adopting C95800 aluminum bronze and 2205/2507 duplex steel materials, it completely solves the problem of chloride ion corrosion. Thread standards support NPT, BSPP, BSPT customization, perfectly matching global marine and offshore equipment. Key components are made of 2205 stainless steel, and the spring is Inconel X-750, ensuring long-term stable operation in seawater environments. Please be sure to clean pipeline impurities before installation to prevent impurities from damaging the sealing surface. Click to see why shipyards around the world choose Xiazhao threaded seawater safety valves — small bore, strong corrosion resistance!

[Product Landing Page Detailed Copy]

01 Why Do Small-Bore Seawater Pipelines Need Special Threaded Safety Valves?

In marine vessels, offshore platforms and coastal industries, small-bore pipelines (1/2" - 2") are widely used in:

• Branch pipelines of seawater cooling systems

• Instrument pressure protection

• Small pump outlet protection

• Seawater sampling pipelines

• Ballast water control systems

These small-bore pipelines also face the severe challenge of chloride ion corrosion. Ordinary threaded safety valves are mostly made of brass or 304 stainless steel, which are prone to the following problems in seawater environments:

• Dezincification corrosion (brass)

• Pitting and perforation (304 stainless steel)

• Thread seizure (due to accumulation of corrosion products)

• Leakage caused by corrosion of sealing surfaces

Once the safety valve fails, it will directly lead to equipment overpressure, seawater leakage and system shutdown.

Xiazhao Threaded Seawater Safety Valve — provides a professional solution for small-bore high-corrosion working conditions.

02 Analysis of Core Advantages of Main Image

【Advantage 1: Military-Grade Corrosion-Resistant Materials, Solving Seawater Chloride Ion Corrosion】

Optional Materials	Application Scenarios	Core Advantages
C95800 Aluminum Bronze	Marine seawater pipelines, pumps and valves	Excellent resistance to seawater erosion corrosion, anti-biofouling, high thread strength
2205 Duplex Steel	Seawater desalination instrument pipelines	High strength, resistance to chloride ion stress corrosion cracking
2507 Super Duplex Steel	Key instruments of offshore platforms	Extremely high corrosion resistance, suitable for the harshest marine environments

Component Material Details:

Components	Standard Material	Optional Materials
Nozzle	2205 Duplex Steel	2507 / C95800
Body	C95800 Aluminum Bronze / 2205 Duplex Steel	2507 Super Duplex Steel
Disc	2205 Duplex Steel	2507 / C95800
Spindle	2205 Duplex Steel	2507 / Monel
Spring	Inconel X-750	Inconel 625 / Hastelloy
Cap	2205 Duplex Steel (4C2 Closed Type)	C95800

Customer Benefits: Every component in contact with the medium is designed for corrosion protection, ensuring the valve has a service life of more than 10 years in seawater environments. The threaded connection part is also corrosion-resistant to avoid seizure.

【Advantage 2: Global Thread Standard Customization, Matching Equipment from All Countries】

Pain Point: American equipment uses NPT threads, European equipment uses BSPP threads, and Asian equipment uses BSPT threads — inconsistent standards lead to difficult procurement, and on-site installation may be unusable due to mismatched threads.

Xiazhao Solution: The same valve can provide:

• NPT (American Standard Taper Thread, suitable for American and Middle Eastern projects)

• BSPP (British Standard Parallel Thread, suitable for European and Asian equipment)

• BSPT (British Standard Taper Thread, suitable for Commonwealth countries)

Customer Benefits: One model, globally applicable. Just inform the thread standard, and we will match it for you.

【Advantage 3: Precision Design, Preventing Internal and External Seawater Leakage】

• Design Standard: Complies with API 526 to ensure accurate discharge area.

• Sealing Standard: Complies with API 527, achieving zero leakage in closed state.

• Thread Sealing: The root of the valve body thread is specially treated. With PTFE thread sealant or sealing tape, it ensures no external leakage at the threaded connection.

Bonnet Type:

4C2 Screwed with Plug — Highly recommended for seawater. The fully enclosed structure prevents external corrosive media from entering the bonnet interior, protecting the spring and spindle.

【Advantage 4: Precise Set Pressure, Quick Reset】

The spring is made of Inconel X-750 nickel-based alloy, which is not only resistant to seawater corrosion but also has stable elasticity at high temperatures.

The set pressure can be accurately set to any value within PN16/PN25/PN40 class, and the lift accuracy is controlled within ±3%.

The optimized internal component design ensures that the valve resets quickly after lifting, reducing medium loss and valve seat erosion.

Applicable Temperature: ≤ 200°C, meeting the needs of most seawater working conditions.

【Advantage 5: Full Coverage of Small-Bore Series】

Thread Size	Inlet x Outlet	Common Applications
1/2"	1/2" x 1/2"	Instrument pipelines, small pump protection
3/4"	3/4" x 3/4"	Seawater cooling branch, small heat exchanger
1"	1" x 1"	Pump outlet, small pressure vessel
1-1/4"	1-1/4" x 1-1/4"	Seawater main pipe branch
1-1/2"	1-1/2" x 1-1/2"	Medium-sized equipment protection
2"	2" x 2"	Seawater system main pipe

03 Typical Application Scenarios

Xiazhao Threaded Seawater Safety Valve is widely used in the following small-bore high-corrosion working conditions:

Application Scenarios	Specific Equipment	Why Choose Xiazhao
Marine seawater cooling system	Generator cooling water inlet, air compressor cooling water pipe	C95800 aluminum bronze resists seawater erosion, and threaded connection facilitates installation and maintenance
Offshore platform instrument pipeline	Pressure transmitter root valve, instrument protection valve	2205 duplex steel resists chloride ion corrosion, preventing instrument misoperation
Seawater desalination plant	Small RO membrane protection, high-pressure pump bypass	2507 super duplex steel resists extremely high chloride ion concentration
Coastal chemical plant	Seawater sampling port, small heat exchanger protection	Full corrosion-resistant materials, avoiding frequent replacement
Port machinery hydraulic system	Hydraulic oil tank overpressure protection (seawater cooling type)	Inconel spring is corrosion-resistant, ensuring long-term stable operation

04 Installation Notes: Pipeline Cleaning is Crucial

The safety valve is a precision protection device, and its sealing surface is precision ground. Once damaged by impurities, it will cause leakage or even failure. Before installing a new threaded seawater safety valve, please be sure to perform the following operations:

• Thoroughly purge/clean the pipeline: Newly installed pipelines may contain welding slag, rust, sediment and other debris. Before installing the safety valve, the pipeline must be thoroughly purged or cleaned with compressed air or clean water to ensure impurities are removed.

• Thread treatment:

• Clean the thread: Ensure the thread is free of burrs and iron chips.

• Use appropriate sealing materials: It is recommended to use PTFE thread sealing tape or seawater-resistant thread sealant. When wrapping, be careful not to cover the first thread to prevent the sealing tape from entering the valve interior.

• Moderate tightening torque: Over-tightening may cause valve body deformation or thread damage.

• Remove the safety valve before pressure test: If the system needs pressure test (such as hydrostatic test), it is recommended to first remove the safety valve and plug it with a threaded plug. After the pressure test is completed and the pipeline is flushed clean, install the safety valve again to avoid impurities in the test medium damaging the internal components of the valve.

• Slow pressure rise: When putting into use for the first time, the pressure should be raised slowly to observe for leakage. If leakage is caused by foreign objects between the disc and the valve seat, you can try to gently tap the valve body (non-metallic part) to vibrate and discharge the foreign objects. However, if it cannot be removed, the valve needs to be disassembled and cleaned.

• Regular inspection: It is recommended to perform a lift test at least once a year to ensure the valve operates flexibly. During the test, pay attention to collecting the medium to avoid environmental pollution.

Following the above steps can effectively avoid early failure of the safety valve caused by construction residual impurities and ensure long-term reliable operation of the valve.

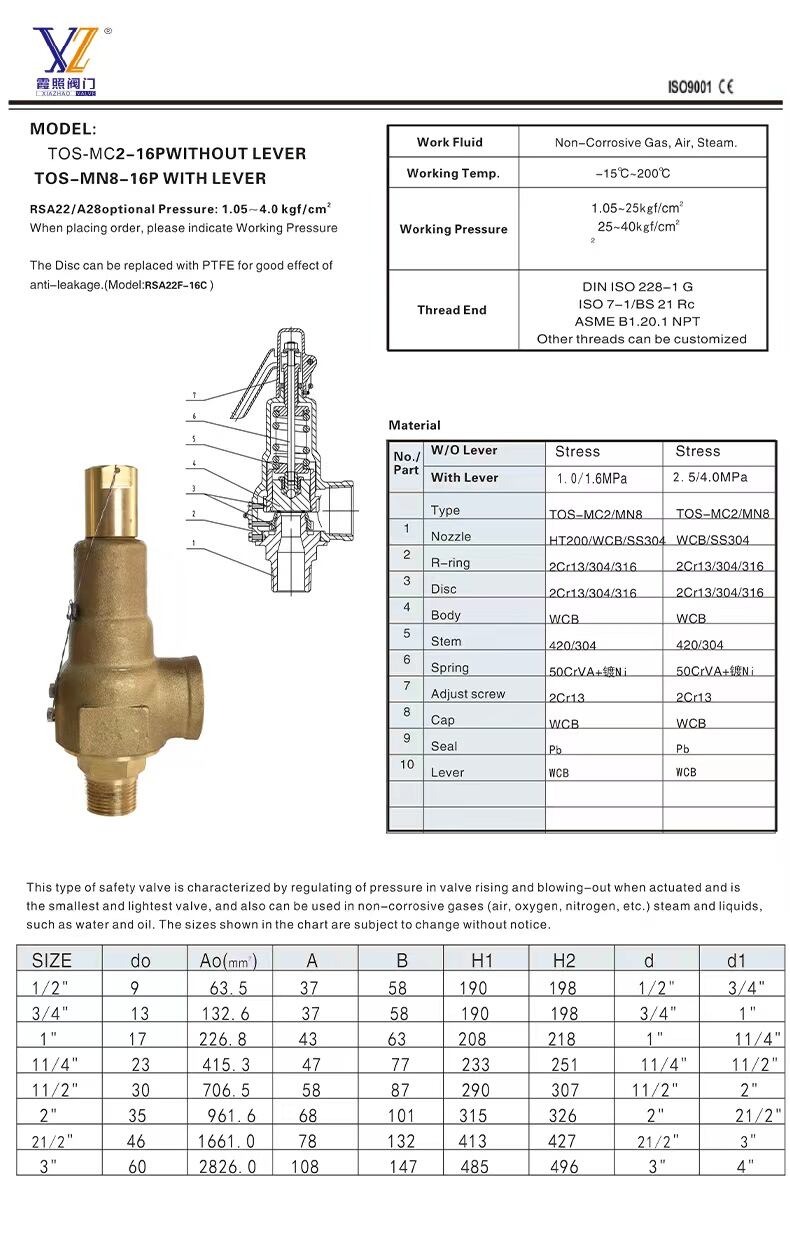

05 Dimensions and Detailed Parameters

Item	Specification	Remarks
Model	TOS Series	Bonnet Type: 4C2 (Recommended for Seawater)
Thread Size	1/2", 3/4", 1", 1-1/4", 1-1/2", 2"	Inlet = Outlet
Thread Standard	NPT / BSPP / BSPT	Customizable on demand, please indicate when placing an order
Pressure Class	PN16 / PN25 / PN40	Selected according to set pressure
Set Pressure Range	0.1 - 4.0 MPa	Can be accurately set to the required value
Applicable Medium	Seawater, brine, high chloride ion solution	Special for high-corrosion media
Temperature Range	≤ 200°C	Please note if exceeding, heat dissipation bonnet can be equipped
Valve Body Material	C95800 Aluminum Bronze / 2205 Duplex Steel / 2507 Super Duplex Steel	Optional
Nozzle/Disc Material	2205 Duplex Steel (Standard) / 2507 / C95800	All components in contact with the medium are corrosion-resistant
Spring Material	Inconel X-750 (Standard)	Optional Inconel 625 / Hastelloy
Design Standard	API 526	Discharge area complies with international standards
Sealing Standard	API 527	Zero leakage in closed state
NACE Standard	Compatible with NACE MR0175 / ISO 15156	Suitable for acid oil and gas fields

06 Why Choose Xiazhao Threaded Seawater Safety Valve?

Because we are driven by "material expertise + global service" to solve your small-bore marine corrosion problems:

Your Pain Points	Xiazhao's Solutions
Small-bore valves corrode and perforate in seawater within half a year	Provide military-grade corrosion-resistant materials such as C95800 / 2205 / 2507, extending service life by 3 times
Incorrect thread standard, can't be screwed on after purchase	Full standard customization of NPT/BSPP/BSPT, confirm thread type before delivery
Spring corrosion and fracture, valve can't reset	Standard Inconel X-750 nickel-based alloy spring, corrosion-resistant and stable in elasticity
Leakage at threaded connection	Special treatment of valve body thread root, combined with recommended sealing method, ensuring no external leakage
Leakage soon after installation	Provide detailed installation guidelines, emphasizing pipeline cleaning and thread treatment

07 Technical Support and Service

• Drawing Confirmation: Before placing an order, the technical department provides detailed drawings to verify thread standard, installation dimensions and set pressure.

• Clear Marking: The thread standard, material and set pressure are permanently marked on the valve body for easy on-site identification.

• Optimal Logistics: For overseas projects, the logistics department provides the best sea/air transportation plan to ensure the goods arrive at any port in the world on time.

• On-site Support: If needed, remote installation guidance or on-site technical services can be provided.

08 Take Action Now

If your small-bore seawater system is facing the following challenges:

• 1/2" - 2" threaded connection requires seawater corrosion-resistant safety valve

• Marine or offshore projects require multiple thread standards

• Strict compliance with API 526/527 and NACE standards is required

• Inconel X-750 spring is needed to ensure long-term stability

Contact the Technical Department of Shanghai Xiazhao Valve now!

Let us use the TOS Series Threaded Seawater Safety Valve to provide the most reliable overpressure protection for your small-bore marine equipment.
