Full-Welded Trunnion Mounted Ball Valve – API 6D, ASME B16.34, Fire-Safe Design

Full-Welded Trunnion Mounted Ball Valve – API 6D, ASME B16.34, Fire-Safe Design

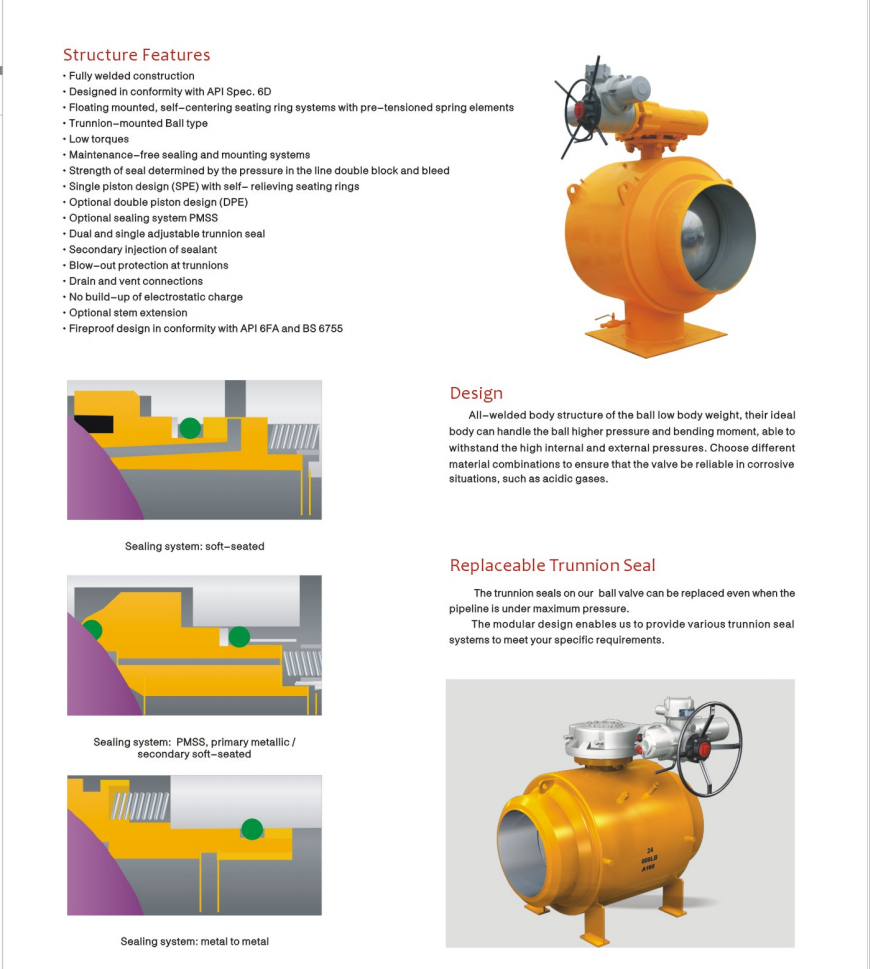

Structure Features

·Fully welded construction

·Designed in conformity with API Spec.6D

·Floating mounted,self-centering seating ring systems with pre-tensloned spring elements

·Trunnlon-mounted Ball type

·Low torques

·Maintenance-free sealing and mounting systems

·Strength of seal determined by the pressure in the line double block and bleed

·Single piston design(SPE)with self-relleving seating rings

·Optional double piston design(DPE)

·Optional sealing system PMSS

·Dual and single adjustable trunnion seal

·Secondary injection of sealant

·Blow-out protection at trunnions

·Drain and vent connections

·No build-up of electrostatic charge

·Optional stem extension

·Fireproof design in conformity with API6FA and BS 6755

Design

All-welded body structure of the ball low body weight,their idealbody can handle the ball higher pressure and bending moment,able towithstand the high internal and external pressures.Choose differentmaterlal combinations to ensure that the valve be reliable in corrosivesituations,such as acidic gases.

Replaceable Trunnion Seal

The trunnion seals on our ball valve can be replaced even when thepipeline is under maximum pressure.

The modular design enables us to provide various trunnion sealsystems to meet your specific requirements.
