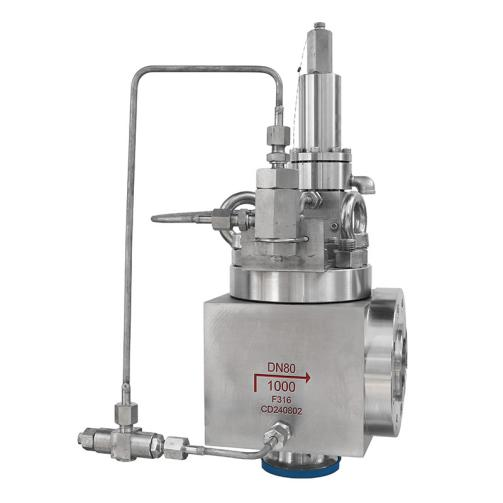

Shanghai Xiazhao Valve Co., Ltd. has always been committed to the innovation and research of valve technology. Recently, it has successfully launched a high-pressure pilot valve with excellent performance. This product shows many highlights in design and performance, providing better valve solutions for related industrial fields.
1. Connection Structure Design

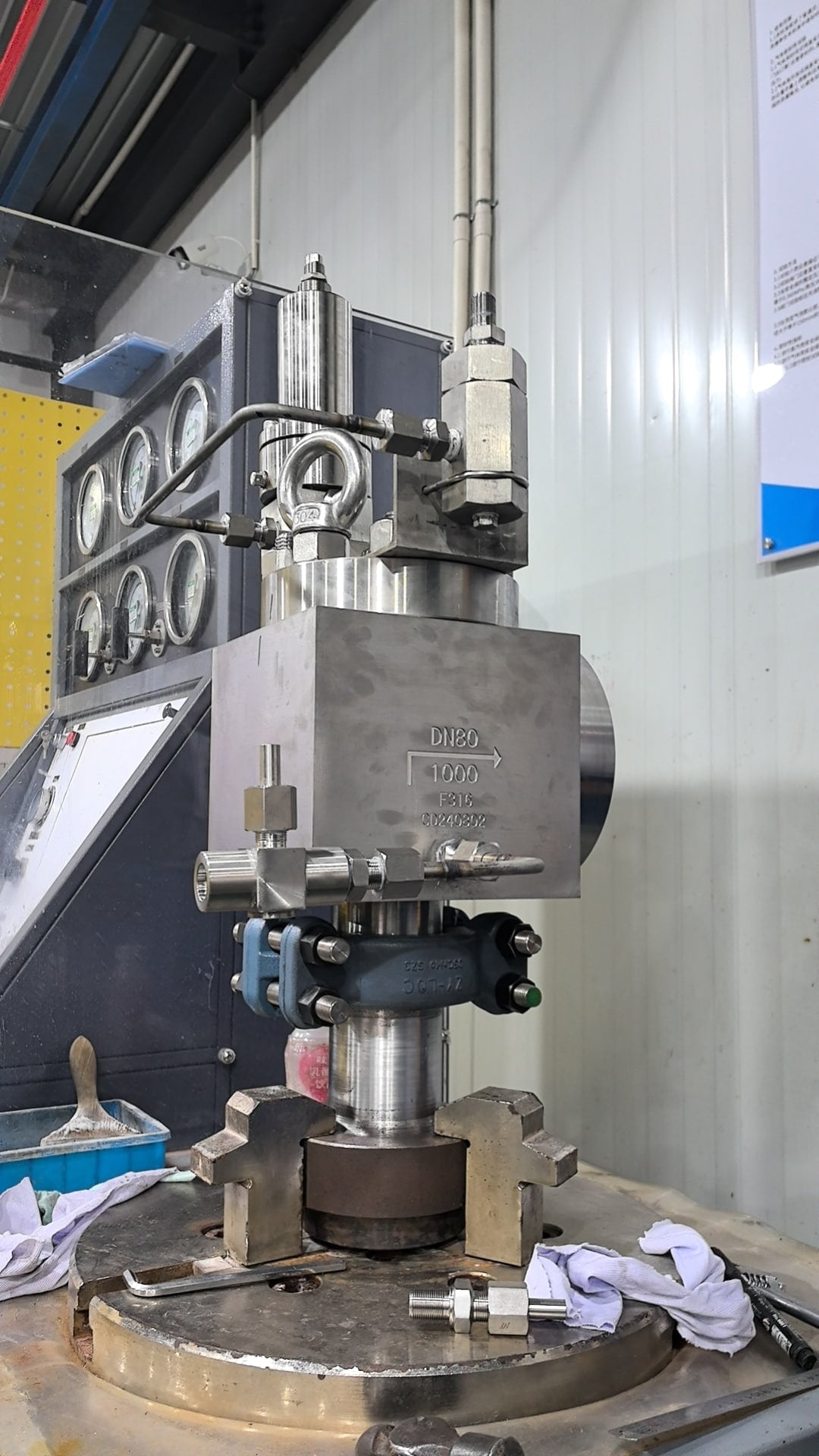

Inlet - High-Pressure Clamp Structure: The inlet of this high-pressure pilot valve adopts an advanced high-pressure clamp structure. This structure is similar to the Grayloc self-tightening clamp and has a unique self-tightening design principle. It consists of core components such as clamps, joints, and sealing gaskets. During installation, the clamp and joint cooperate with each other through specific geometric shapes and produce relative movement, thereby realizing the automatic fastening of the connection. This design perfectly copes with the thermal expansion and contraction of pipelines in high-pressure environments, effectively avoiding leakage risks that are prone to occur with traditional connection methods. At the same time, combined with high-performance sealing gaskets, which are compressed when the clamp is tightened, a stable and reliable sealing layer is formed to ensure that the medium does not leak under high-pressure working conditions. In addition, the locking mechanism in this structure, through specific locking rings or devices, ensures that the connection remains highly stable even when affected by external forces or temperature changes, preventing serious problems such as leakage or fracture caused by loosening or displacement. This high-pressure clamp structure has been widely used and verified in fields such as high-temperature and high-pressure heat-conducting oil pipelines. Its application in the inlet connection of high-pressure pilot valves will provide a solid guarantee for the stable operation of the product in high-pressure environments.
Outlet - Flange Connection: The outlet adopts a standard flange connection, which has the advantages of firm connection, good sealing performance, and easy installation and disassembly. Flange connection is widely used in industrial pipeline connections with mature technology. It can withstand large pressure and torque and adapt to various complex working conditions. When connecting with other equipment or pipelines, the versatility of flange connection makes the installation process more convenient and efficient, which can effectively reduce installation costs and time costs. At the same time, by selecting appropriate flange materials and sealing gaskets, the sealing performance can be further improved to meet the strict requirements of different media and working conditions for the valve outlet connection.
2. Key Performance Parameter - Opening Pressure
The opening pressure of the valve is set to 53MPa, which is obtained through a large number of experimental tests and actual working condition simulations. In high-pressure systems, accurate opening pressure is crucial to ensure the safe and stable operation of the system. When the system pressure reaches 53MPa, the pilot valve can open quickly and stably, adjust and control the system pressure in time, and prevent safety accidents or equipment damage caused by excessive system pressure. The setting of this opening pressure takes into account the needs of various high-pressure industrial scenarios. Whether it is the petrochemical industry, power industry, or other fields with extremely high requirements for pressure control accuracy, it can rely on this stable and reliable opening pressure performance to guarantee the normal operation of the system.
The high-pressure pilot valve of Shanghai Xiazhao Valve Co., Ltd., with its unique inlet high-pressure clamp structure, reliable outlet flange connection, and precise opening pressure setting of 53MPa, stands out among similar products. It will bring more efficient, safe, and stable user experience to industrial users and help the production and operation of related industries reach a new level.
