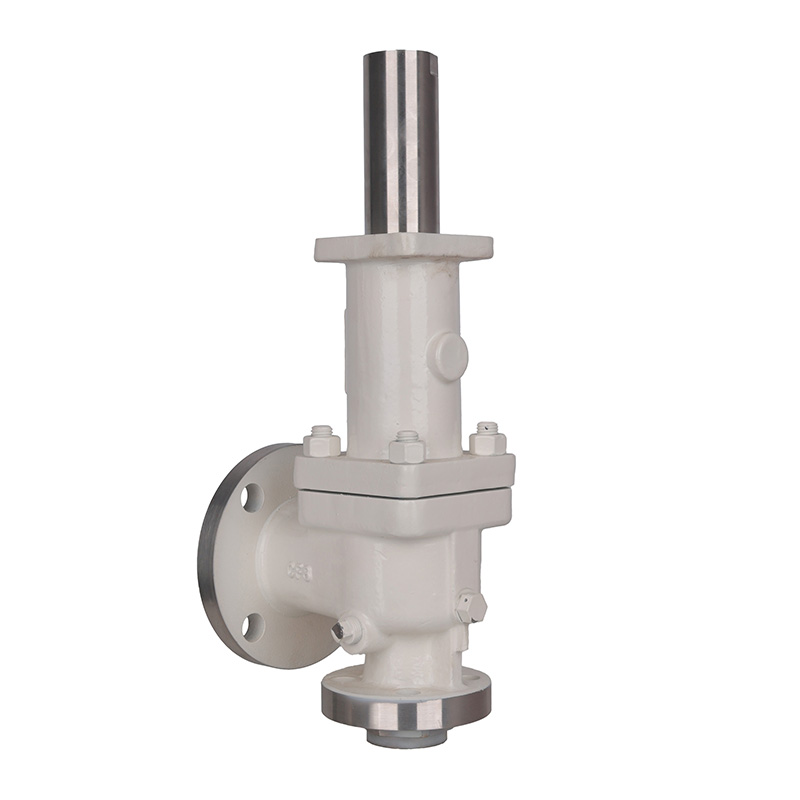

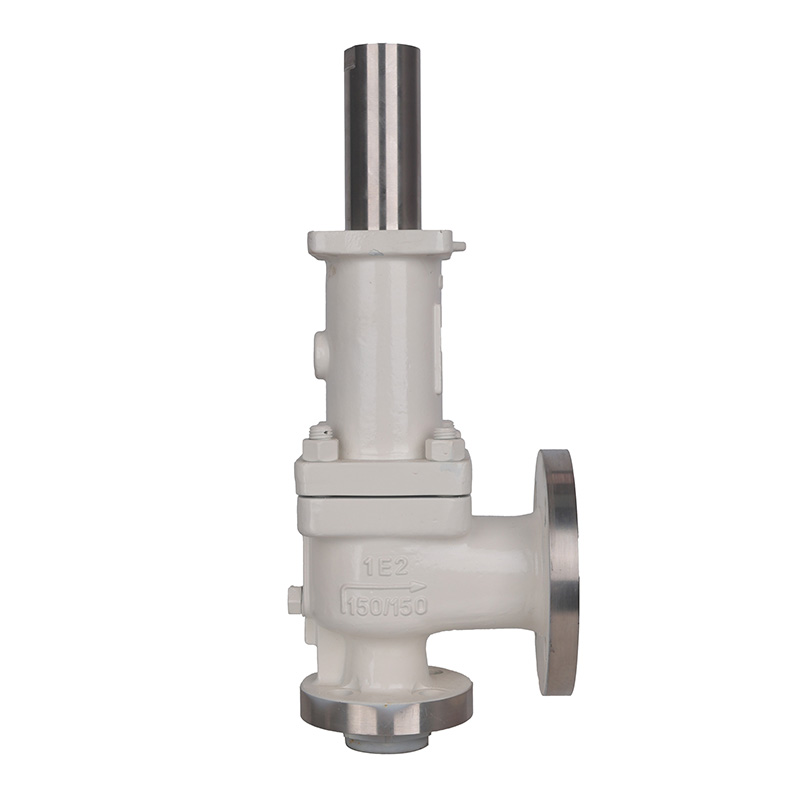

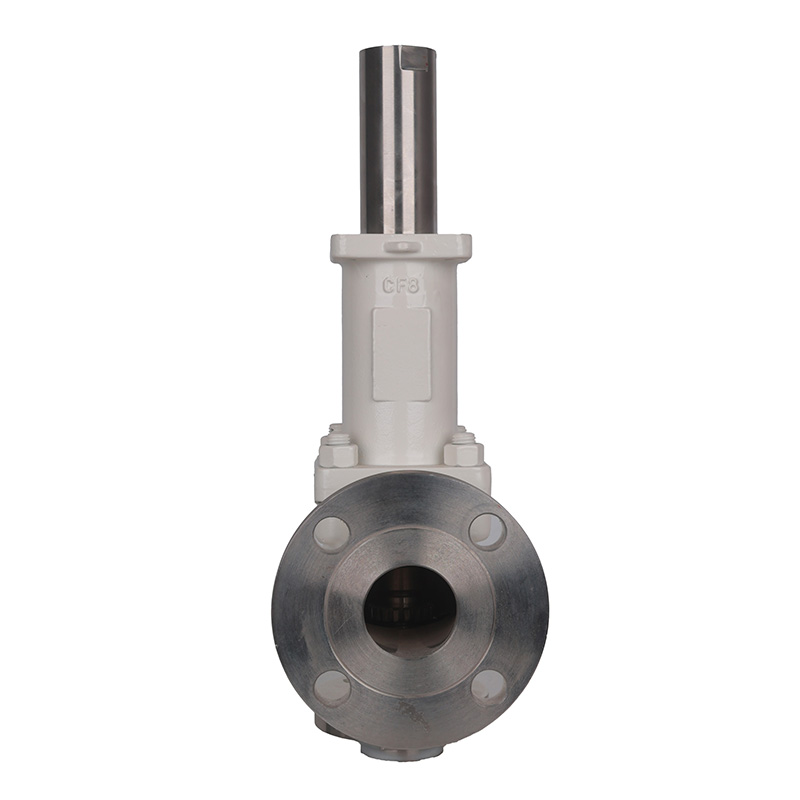

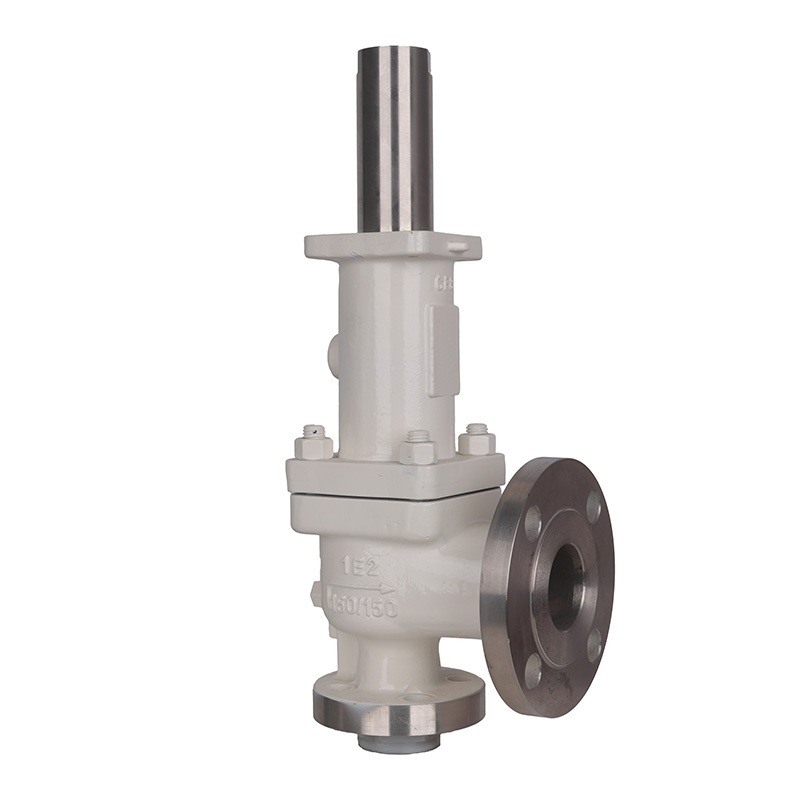

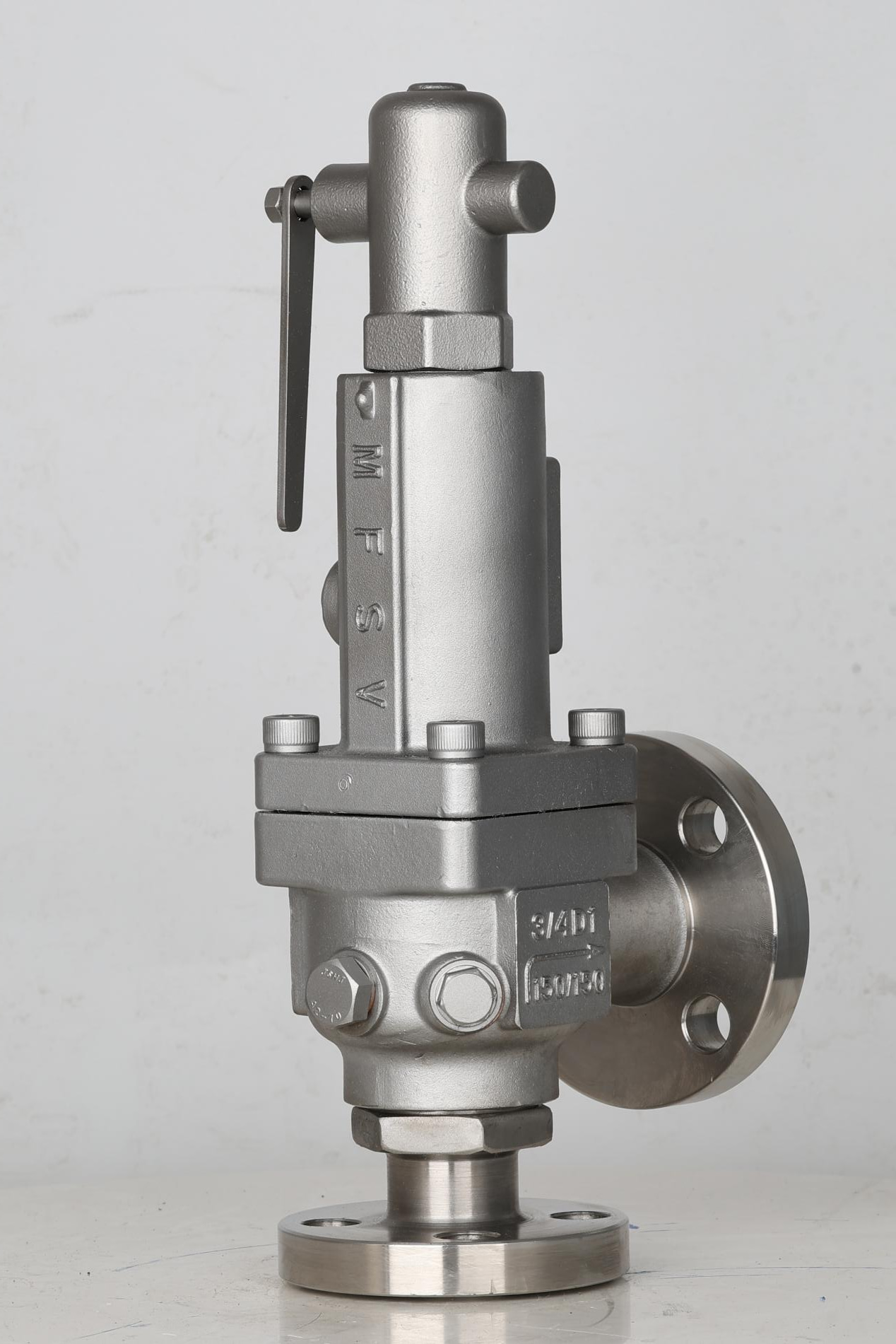

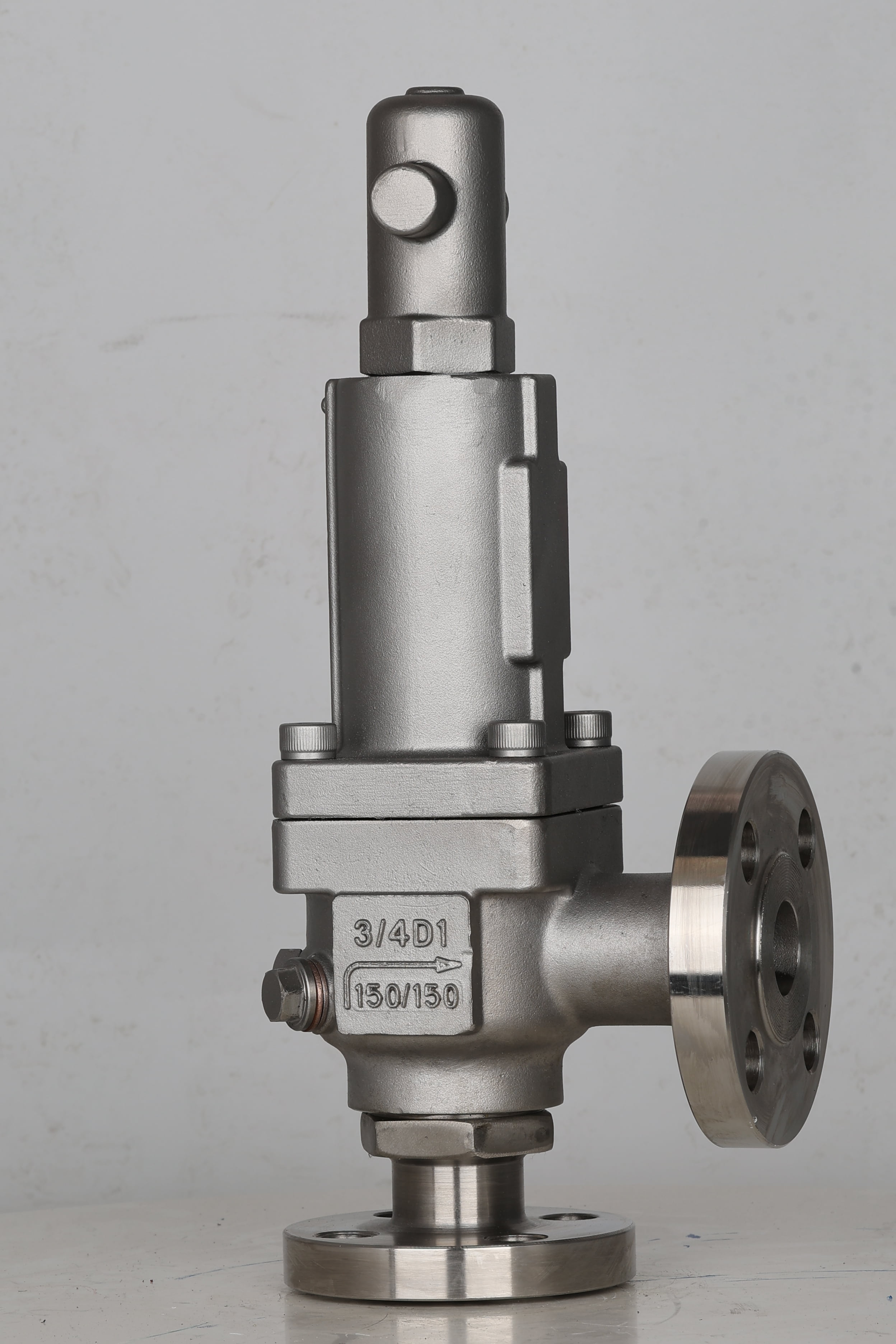

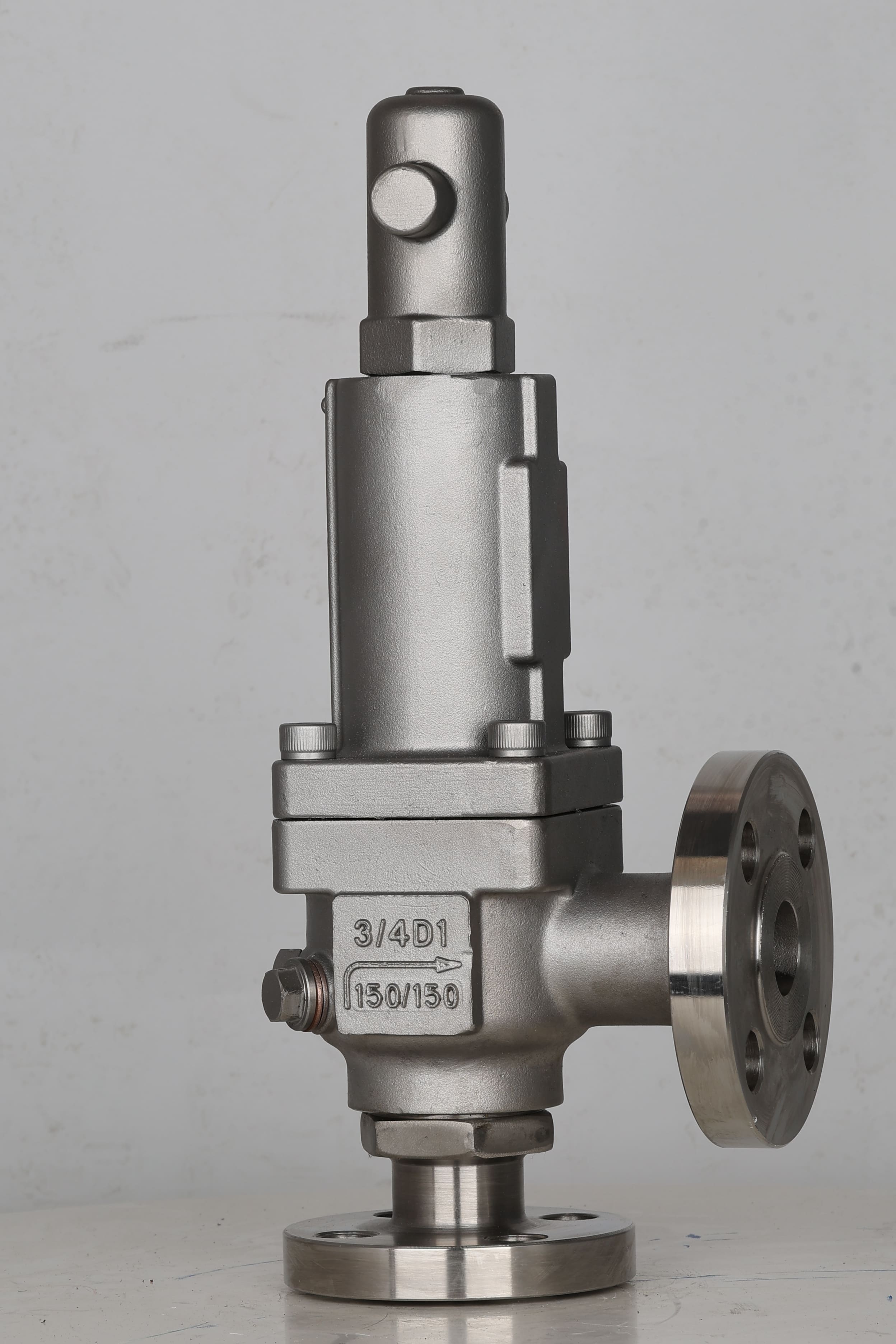

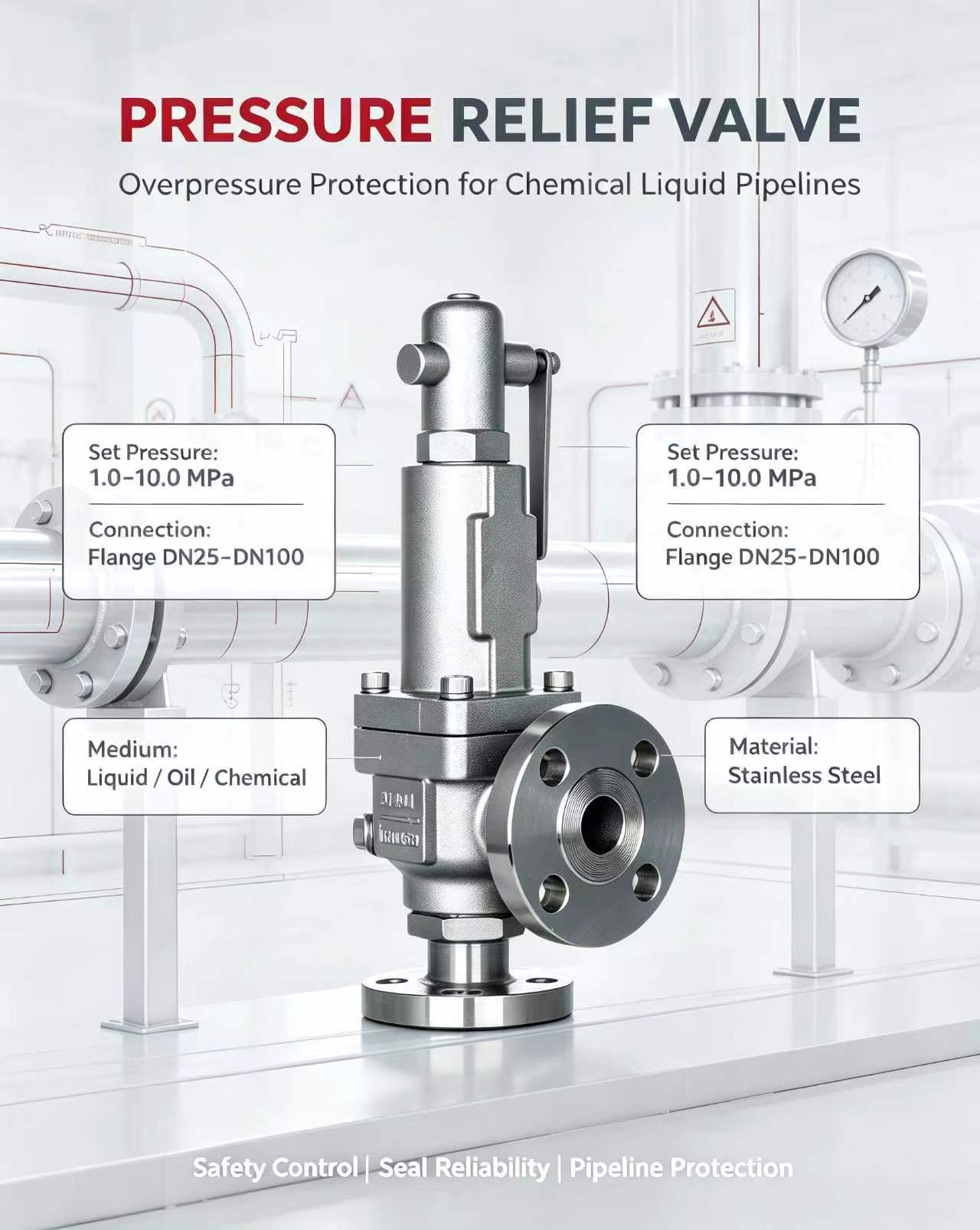

J-Series valves provide high quality and dependable overpressure protection for air, gas, steam, vapor, liquid and two-phase applications in one simple design. Now available with two new to the world technologies, Balanced Diaphragm and Bellows Leak Detection.
Features
| Cap Types | |||
| 4C2 Screwed with Plug | 4N8 Lifting Lever with Plug | 4C3 Packed Lifting with Plug | |
 |
 |
 |
|

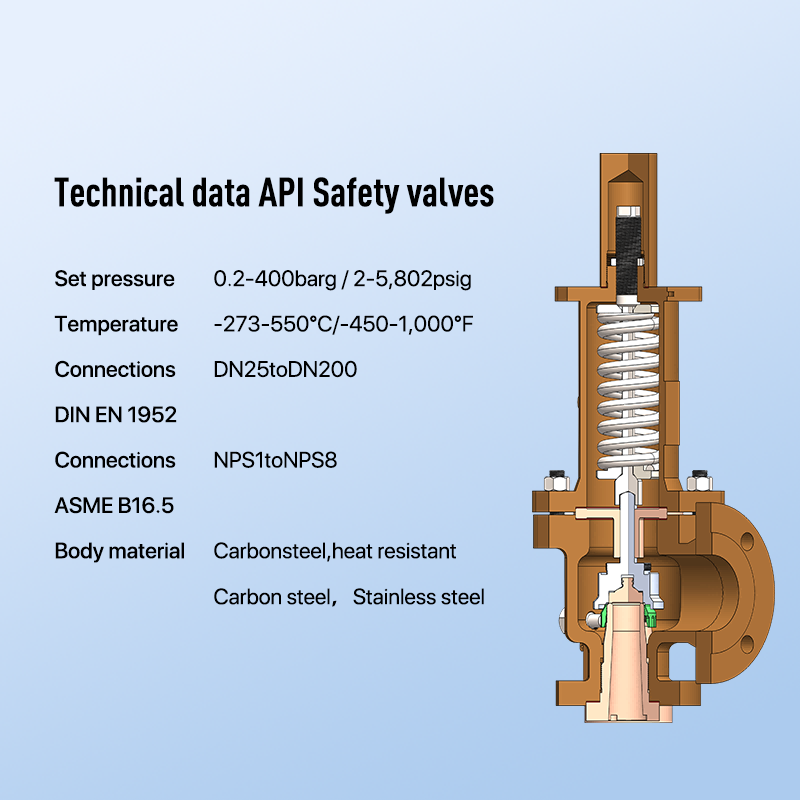

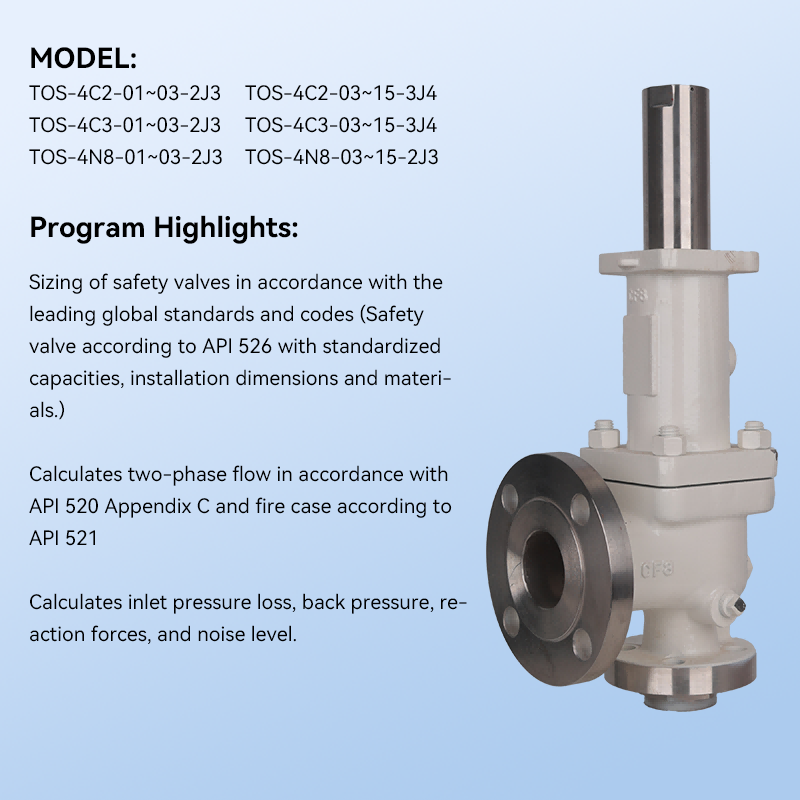

| Item | Component | Type TOS NACE | Type TOBS NACE |
| 1 | Nozzle | 316 Stainless Steel | 316 Stainless Steel |
| 2 | Nozzle Gasket | Flexible Graphite/Stainless Steel | Flexible Graphite/Stainless Steel |
| 3 | Body | ASME SA216 GR WCB | ASME SA351 GR CF8M |
| 4 | Set Screw Gasket | Stainless Steel | Stainless Steel |
| 5 | Set Screw | Stainless Steel | 316 Stainless Steel |
| 6 | Nozzle Ring | Stainless Steel | 316 Stainless Steel |
| 7 | Disc | Stainless Steel | 316 Stainless Steel |
| 8 | Retention Clip | Stainless Steel | Stainless Steel |
| 9 | Disc Holder | Stainless Steel | 316 Stainless Steel |
| 9A | Bellows | / | 316L Stainless Steel |
| 10 | Guide | Stainless Steel | 316 Stainless Steel |
| 11 | Guide Gasket | Stainless Steel | Stainless Steel |
| 12 | Bonnet Stud | ASME SA193 GR. B7 | ASME SA193 GR. B8M |
| 13 | Bonnet Stud Nut | ASME SA194 CL 2H | ASME SA194 CL 8M |
| 14 | Spring Washers | Carbon Steel | Stainless Steel |
| 15 | Spring | Alloy Steel | Alloy Steel Corrosion Resistant Coating |
| 16 | Spindle | 420 Stainless Steel | 316 Stainless Steel |
| 17 | Adjusting Bolt | Stainless Steel | Stainless Steel |
| 18 | Cap Gasket | Stainless Steel | Stainless Steel |
| 19 | Adjusting Bolt Nut | Stainless Steel | Stainless Steel |
| 20 | Threaded Cap | Stainless Steel | Stainless Steel |
| Orifice Areacm2 | Inlet Flange Class | Type | Size(inch) | Connections | Maximum Set Pressure(MPa) | Back pressure limit38℃ | Material | Inlet Temp.Range（℃） | ||||||||
| Inlet×Orif-ice×Outlet | Lnlet Temperature | |||||||||||||||
| Inlet | Outlet | -268~-60 | -59~29 | -29℃~38℃ | 38℃~232℃ | 233℃~427℃ | 427~538 | TOS-4C2 | TOBS-4C2 | Body | Spring | |||||
| 1.265(E) | 1 | TOS-01 | 1E2. | 150LB | 150LB | 1.96 | 1.27 | 0.55 | 1.96 | 1.58 | Carbon Steel. | Alloy Steel. | -29~427 | |||
| 2 | TOS-03 | 1E2. | 300LB | 150LB | 1.96 | 1.96 | 1.96 | 1.96 | 1.58 | |||||||
| 3 | TOS-03a | 1E2. | 300LB | 150LB | 5.10 | 4.24 | 2.82 | 1.96 | 1.58 | |||||||
| 4 | TOS-06 | 1E2. | 600LB | 150LB | 10.20 | 8.51 | 5.68 | 1.96 | 1.58 | |||||||
| 5 | TOS-09 | 11/2E2 | 900LB | 300LB | 15.30 | 12.72 | 8.51 | 4.13 | 3.44 | |||||||
| 6 | TOS-15 | 11/2E2 | 1500LB | 300LB | 25.54 | 21.23 | 14.20 | 4.13 | 3.44 | |||||||
| 7 | TOS-25 | 11/2E3 | 2500LB | 300LB | 41.37 | 35.40 | 23.65 | 5.10 | 3.44 | |||||||
| 3 | TOS-03a | 1E2. | 300LB | 150LB | 3.51 | 1.48 | 1.96 | 1.58 | Chrome Molybde-num Steel. | Alloy Steel. | 428~538 | |||||
| 4 | TOS-06 | 1E2. | 600LB | 150LB | 6.99 | 2.96 | 1.96 | 1.58 | ||||||||
| 5 | TOS-09 | 11/2E2 | 900LB | 300LB | 10.51 | 4.48 | 4.13 | 3.44 | ||||||||
| 6 | TOS-15 | 11/2E2 | 1500LB | 300LB | 17.51 | 7.44 | 4.13 | 3.44 | ||||||||
| 7 | TOS-25 | 11/2E3 | 2500LB | 300LB | 29.16 | 12.41 | 5.10 | 3.44 | ||||||||
| 1 | TOS-01 | 1E2. | 150LB | 150LB | 1.89 | 1.89 | 1.89 | 1.24 | 0.55 | 0.13 | 1.89 | 1.58 | Austenitic Stainless Steel. |
Alloy Steel. Stainless Steel. |
-268~538 | |
| 2 | TOS-03 | 1E2. | 300LB | 150LB | 1.89 | 1.89 | 1.89 | 1.89 | 1.89 | 1.89 | 1.89 | 1.58 | ||||
| 3 | TOS-03a | 1E2. | 300LB | 150LB | 4.96 | 4.96 | 4.96 | 3.41 | 2.89 | 2.41 | 1.89 | 1.58 | ||||
| 4 | TOS-06 | 1E2. | 600LB | 150LB | 9.92 | 9.92 | 9.92 | 6.82 | 5.82 | 4.82 | 1.89 | 1.58 | ||||
| 5 | TOS-09 | 11/2E2 | 900LB | 300LB | 14.89 | 14.89 | 14.89 | 10.23 | 8.72 | 7.23 | 4.13 | 3.44 | ||||
| 6 | TOS-15 | 11/2E2 | 1500LB | 300LB | 24.82 | 24.82 | 24.82 | 17.09 | 14.54 | 12.06 | 4.13 | 3.44 | ||||
| 7 | TOS-25 | 11/2E3 | 2500LB | 300LB | 27.57 | 41.36 | 41.36 | 28.47 | 24.26 | 20.09 | 4.96 | 3.44 | ||||

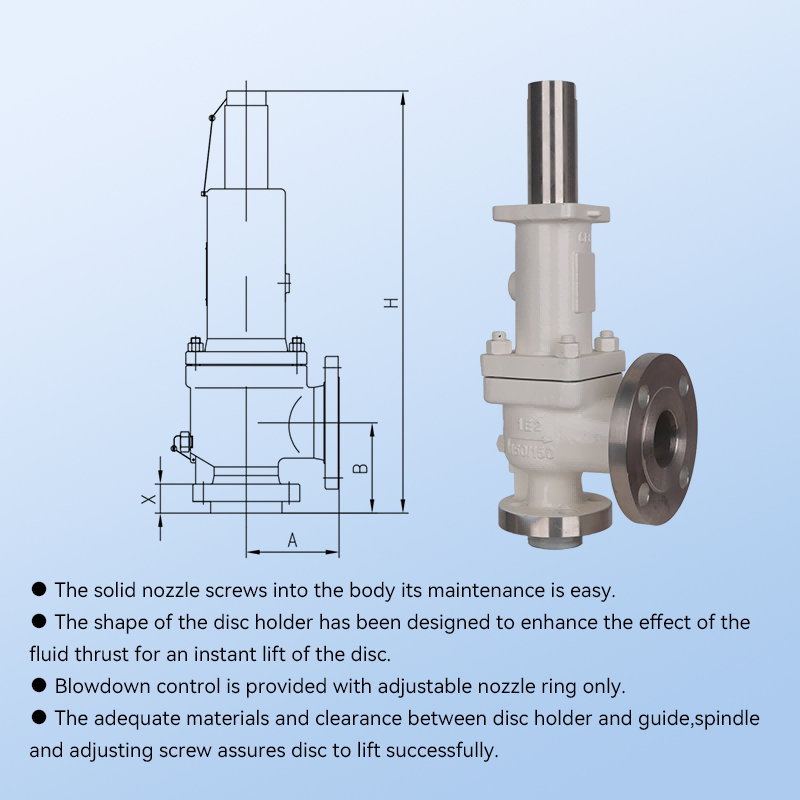

| Type |
ANSI Flange Class |
Center to Face | Total Thickness of Flange gnd Nozzle | Approximate height H | ||||||
| outlet | lnlet | Cap Type | ||||||||
| Inlet | Outlet | A | B | X | 4C2 | 4N8 | 4C3 | |||
| TOS-01 | 1E2 | 150 | 150 | 114.5 | 105.0 | 39 | 450 | 500 | 510 | |
| TOS-03 | 1E2 | 300 | 150 | 114.5 | 105.0 | 39 | 450 | 500 | 510 | |
| TOS-03a | 1E2 | 300 | 150 | 114.5 | 105.0 | 39 | 450 | 500 | 510 | |
| TOS-06 | 1E2 | 600 | 150 | 114.5 | 105.0 | 39 | 450 | 500 | 510 | |
| TOS-09 | 11/2E2 | 900 | 300 | 139.5 | 105.0 | 51 | 470 | 520 | 530 | |
| TOS-15 | 11/2E2 | 1500 | 300 | 139.5 | 105.0 | 51 | 470 | 520 | 530 | |
| TOS-25 | 11/2E3 | 2500 | 300 | 178.0 | 139.5 | 64 | 500 | 550 | 560 | |
