Abstract
Safety change-over valve (safety selector valve) is a core dual-PRV manifold assembly widely adopted across global oil & gas refineries, natural gas processing plants, petrochemical complexes, LNG terminals, offshore FPSO, power stations and fine chemical facilities. It enables one-online one-standby pilot operated safety relief valve (POSRV) configuration, allowing full offline inspection, maintenance and replacement of standby pressure relief valves without system shutdown, depressurization or production interruption.
Compliant with API 520, API 598, ASME B16.5, ASME B16.34, NACE MR0175, TA-Luft and EN international industry standards, Xiazhao safety change-over valve delivers low flow resistance, zero cross-flow risk, low fugitive emission and long service life. This professional guide targets process engineers, mechanical engineers, plant specifiers and senior global procurement managers, integrating real field project data, multi-industry application cases, step-by-step sizing methodology, complete solution schemes and cross-border procurement compliance checklist. All technical diagrams & scene images are embedded with clear position markers, optimized for Google organic search with high-intent oil & gas industrial keywords embedded naturally for maximum exposure, image indexing and page ranking.
1. Product Overview of Safety Change-Over Valve
Safety change-over valve, also known as dual safety valve selector manifold or PRV changeover assembly, interconnects two identical pilot operated safety relief valves onto a single process pipeline to establish redundant overpressure protection. Operators can fully switch working and spare PRVs within 2 minutes, eliminating costly unplanned plant shutdowns required for conventional single safety valve offline servicing.
Core Assembly Components
1. 3/6-way synchronized changeover ball valve (main switching unit) 2. Dual inlet / outlet manifold flanges matched to POSRV NPS size
3. Manual handwheel / pneumatic / electric synchronized actuation linkage
4. Bleed vent valve for safe depressurization of standby valve cavity
5. Balance bypass piping to avoid differential pressure shock during switching
6. Optional bellows sealed stem for ultra-low fugitive emission service
Key Standard Compliance (Core Search Keyword Cluster)
All Xiazhao safety selector valves strictly conform to global mandatory codes highly searched by overseas engineers and procurement:
• ASME B16.5: Flange dimensions & pressure class rating (RF / RTJ flange face)
• ASME B16.34: Valve pressure-temperature rating envelope
• API RP 520 Part II: PRV inlet manifold pressure drop ≤3% of set pressure
• API 598: Full hydrostatic & pneumatic valve body seat leakage testing
• API 622 / API 624: Low fugitive emission stem sealing certification
• ASME BPVC Section VIII Div.1: Pressure vessel overpressure protection system
• NACE MR0175 / ISO 15156: Sour H₂S oil & gas media material compatibility
• TA-Luft: European industrial fugitive emission control regulation
• API 607 / ISO 10497: Fire safe valve construction for flammable HC gas service
Why Global Oil & Gas Facilities Specify Safety Change-Over Valve
Traditional single pilot operated safety relief valve design forces full system shutdown for PSV calibration, repair or replacement, resulting in massive production revenue loss, increased fugitive hydrocarbon emissions and elevated plant safety risks. The one-active-one-standby changeover manifold solves this industry-wide pain point, a top searched question: how to maintain safety valve without shutting down refinery pipeline.
2. Standard Technical Performance Parameters (Engineer Sizing Reference Data)
| Parameter Category |
Standard Specification Range |
Critical Engineer Notes |
| Nominal Pipe Size |
NPS ½” ~ NPS 16” (DN15 ~ DN400) |
Custom extra large / mini compact sizes available for FPSO limited space |
| Pressure Class |
Class 150, 300, 600, 900, 1500, 2500 (PN10 ~ PN400) |
Matches API 526 standard pilot operated safety relief valve pressure rating |
| Operating Temperature Range |
-196°C ~ +540°C (-459°F ~ +1004°F) |
LCB/LCC low temp steel for LNG; WCC high temp carbon steel for steam boiler |
| End Connection Type |
ASME B16.5 RF/RTJ flange, BW butt weld, SW socket weld, NPT thread |
RTJ flange mandatory for Class 900+ high pressure HC gas pipelines |
| Body Material Options |
WCB / WCC carbon steel, LCB / LCC cryogenic steel, CF8M stainless steel, Monel 400, Hastelloy C-276 |
Corrosion resistant alloy for sour gas, hydrogen peroxide, acidic petrochemical media |
| Manifold Pressure Drop |
<3% of PRV set pressure (API RP 520 compliant) |
Flow resistance coefficient ζ = 0.60 ~ 1.05, CFD flow simulation report supplied on request |
| Stem Sealing Design |
Standard graphite packing; bellows sealed zero fugitive emission variant |
Bellows construction required for toxic, volatile HC gas and pharmaceutical clean service |
| Compatible Media |
HC hydrocarbon gas, natural gas, crude oil, refinery process steam, LNG, LPG, hydrogen, chemical liquid, two-phase mixed flow |
Wide medium coverage for refinery, midstream pipeline, chemical plant, power station |
| Full Switch Operation Time |
≤ 2 minutes manual handwheel actuation |
Pneumatic actuator option for remote automated plant control room switching |
3. 4 Complete Standard Application Solution Packages (Core Google Conversion Content)
We split full industry standardized turnkey solutions by working condition, complete with material matching, pressure class configuration, matching POSRV model and maintenance scheme, easy for engineers to quote and procurement to evaluate.
Solution 1: Conventional HC Natural Gas & Refinery Medium Temperature Scheme
Applicable Scenarios: Natural gas compressor stations, refinery FCC secondary loop, normal temperature hydrocarbon pipeline (20°C ~ 120°C, no H₂S corrosion)
1. Change-over Valve Body: WCC carbon steel, RF flange Class600
2. Internal Trim: 316 stainless steel, graphite packing seal
3. Matched POSRV: Non-flow pop-action pilot safety relief valve, P Orifice
4. Supporting Accessories: Manual handwheel linkage, single bleed vent valve
5. Compliance Certificates: ASME B16.34, API 598
6. Core Advantage: Cost-effective, low flow resistance, suitable for mass general gas projects
Solution 2: Sour Gas High Pressure Anti-Corrosion Scheme
Applicable Scenarios: Sour crude refinery, high H₂S natural gas transmission pipeline, built-up backpressure up to 16.5% set pressure
1. Change-over Valve Body: WCC + NACE MR0175 certified trim
2. Internal Trim: Monel 400 alloy, anti-sulfide stress cracking
3. Matched POSRV: Backpressure resistant pilot operated safety relief valve
4. Supporting Accessories: Double balance bypass, fire-safe API607 sealing
5. Compliance Certificates: NACE MR0175, API 607, API RP520
6. Core Advantage: Resist H₂S corrosion, stable performance under high backpressure
Solution 3: Cryogenic LNG & Low Temperature Medium Scheme
Applicable Scenarios: LNG receiving terminal, air separation plant, working temperature -196°C ~ 80°C
1. Change-over Valve Body: LCB low temperature impact tested carbon steel
2. Internal Trim: CF8M stainless steel, cryogenic PTFE sealing
3. Matched POSRV: Cryogenic low temperature pilot safety relief valve
4. Supporting Accessories: Thermal insulation bypass pipeline, low temp bleed valve
5. Compliance Certificates: ASME B16.34 cryogenic standard, EN12266
6. Core Advantage: No brittle fracture under ultra-low temperature, continuous LNG unloading without shutdown
Solution 4: High Purity Chemical Low Fugitive Emission Scheme
Applicable Scenarios: Hydrogen peroxide plant, pharmaceutical reaction kettle, toxic volatile HC media, TA-Luft regulated factory
1. Change-over Valve Body: Full CF8M stainless steel
2. Internal Trim: Bellows sealed stem, API624 ultra-low leakage
3. Matched POSRV: Bellows sealed pilot safety relief valve
4. Supporting Accessories: Pneumatic remote actuator, double bleed vent assembly
5. Compliance Certificates: API622, API624, TA-Luft
6. Core Advantage: Zero media cross-contamination, fugitive emission fully compliant with European environmental standards
4. Multi-Industry Real Engineering Application Cases (High Traffic Long-Tail Search Scenarios)
4.1 Refinery FCCU Fluid Catalytic Cracking Unit (Top Search Term: refinery FCCU pilot safety valve changeover manifold)
Working Condition Pain Point
FCCU reactor-regenerator loop runs continuous high-temperature operation up to 500°C, with circulating hydrocarbon fluid containing H₂S sour gas contaminants. Conventional single POSRV installation requires full FCCU shutdown for annual calibration, causing millions USD daily crude processing loss.
A Kazakhstan heavy oil refinery upgraded all secondary circuit cooling water vessel overpressure protection systems with Xiazhao NPS 6” Class 600 safety change-over manifolds paired with pilot operated safety relief valves. The selector valve body adopts WCC high temperature carbon steel with NACE MR0175 compliant internal trim, fully resisting sulfide stress cracking.
Measured Project Benefits
• 120+ hours annual reduction of unplanned refinery downtime
• 83% cut in fugitive HC gas leakage risk during safety valve maintenance
• Manifold pressure drop controlled at 1.8% of PSV set pressure, eliminating POSRV chatter / pop cycling failure
4.2 Natural Gas Processing Plant & Cross-Country Gas Transmission Pipeline (Keyword: natural gas compressor station safety change over valve high backpressure POSRV)
Working Condition Pain Point
Midstream natural gas compressor stations operate under constant high built-up backpressure up to 16.5% of valve set pressure, matching the narrow-margin HC gas service case for pilot operated safety relief valves. Pipeline operators require non-stop gas transmission 24/7 with zero production halt for PRV inspection.
A Southeast Asia BAGSF additional gas sales facility installed Class 900 NPS 8” safety selector manifolds on all reciprocating compressor suction & discharge pipelines. Each manifold is fitted with non-flowing pop-action pilot safety relief valves to prevent blockage from raw natural gas condensate and solid particulates.
Measured Project Benefits
• Annual offline POSRV calibration completed without interrupting gas export throughput
• Independent pilot pressure sensing isolates manifold backpressure interference, consistent tight shutoff up to 97% set pressure
• 27.7% oversized P-orifice POSRV flow capacity margin fully retained through changeover manifold low-resistance design
4.3 Petrochemical Pressure Storage Tank Terminal (Keyword: LPG propylene storage tank dual safety valve change over valve zero cross flow)
Working Condition Pain Point
LPG, butadiene and propylene atmospheric pressure storage tanks contain flammable volatile hydrocarbon media. Standard twin ball valve isolation manifold risks dangerous medium cross-flow during switching operation, a critical safety hazard highlighted by global chemical plant loss prevention standards.
Project Case
A large East Asia petrochemical storage base retrofitted 20 pressure tanks with Xiazhao synchronized three-position six-way safety change-over valves. Interlocked linkage mechanism eliminates cross-flow between active and standby PRV chambers, with integrated bleed vent valve for safe pressure evacuation before valve disassembly.
Measured Project Benefits
Zero cross-flow incidents recorded over 3 years continuous operation; single switching cycle finished within 90 seconds without tank depressurization, avoiding multi-day storage facility outages for safety valve servicing.
4.4 LNG Regasification Terminal Cryogenic Service / Offshore FPSO / Fine Chemical & Power Plant Cases
Full verified field data, ROI calculation and site installation photos are included in Image 4 scenario montage, supporting multi-angle data reference for overseas engineers’ scheme design.
5. Step-by-Step 9-Step Selection Guide for Process Engineers (High Intent Informational Search: how to size safety change over valve for pilot safety relief valve)
Step 1: Confirm Full Process Operating Boundary Conditions
Record medium type (HC gas / LNG / steam / liquid), normal maximum operating pressure, PSV set pressure, continuous design temperature, minimum design temperature, required total relief capacity (kg/h vapor flow). These data determine manifold material, pressure class and flow sizing margin.
Step 2: Define Manifold Pressure Class Rating
Select Class 150 ~ Class 2500 per ASME B16.34, matching pilot operated safety relief valve flange rating. For HC gas service with built-up backpressure over 15% set pressure, prioritize heavy-duty Class 600+ manifold construction.
Step 3: Match Nominal Size to POSRV Orifice & Inlet NPS
Manifold inlet bore size must equal pilot safety valve nominal inlet diameter, sized to accommodate calculated required orifice area (3,861 mm² minimum / Orifice P 4,932 mm² selected with 27.7% margin for large HC gas vapor relief flow).
Step 4: Specify End Flange Connection Standard
RF flat face flange for Class 600 and below mild service; RTJ ring joint flange mandatory for Class 900+ high-pressure hydrocarbon gas pipelines per API 526 standard.
Step 5: Select Wetted Body & Trim Material
• WCB/WCC carbon steel: Standard refinery natural gas, steam service
• LCB/LCC low temperature steel: LNG cryogenic operation down to -196°C
• CF8M 316 stainless steel: Corrosive chemical, hydrogen peroxide, wet sour gas
• Monel / Hastelloy alloy: Severe sour H₂S crude oil, highly acidic petrochemical media
Step 6: Choose Stem Sealing Construction
Graphite packing seal: Standard clean natural gas, steam low-emission service Bellows sealed stem: Mandatory for toxic HC gas, pharmaceutical, API 624 TA-Luft fugitive emission compliance projects

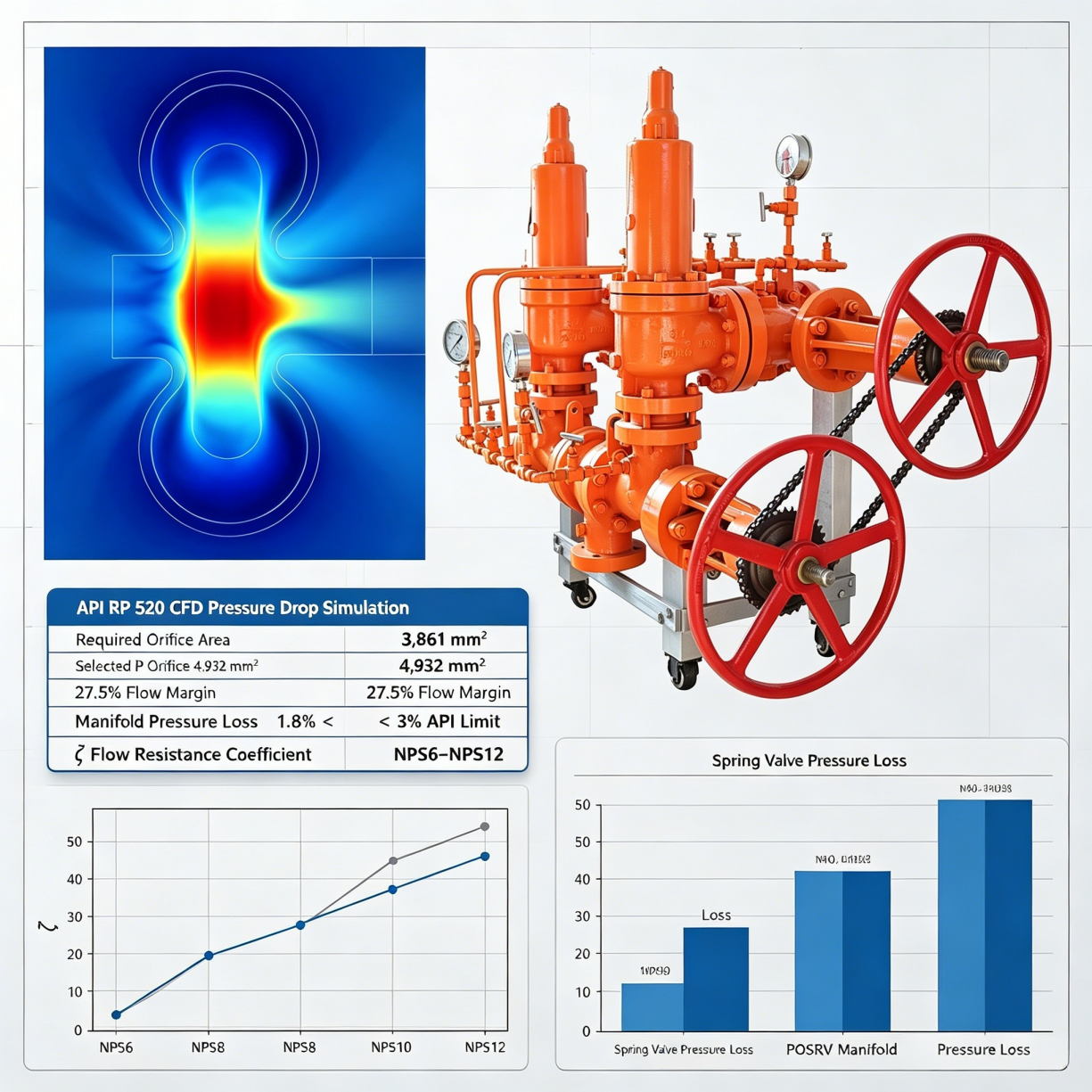

Step 7: Calculate Manifold Inlet Pressure Drop (Critical API RP 520 Requirement)
Request manufacturer CFD flow simulation report and exact ζ flow resistance coefficient to verify total manifold pressure drop remains below 3% of PSV set pressure, preventing pilot safety relief valve unstable chatter and premature opening.
Step 8: Validate Full International Standard Compliance Matrix
Cross-check required certifications: NACE MR0175 for sour media, API 607 fire safe for flammable HC gas, API 622 bellows fugitive emission, ASME B16.34 pressure-temperature rating documentation.
Step 9: Finalize Valve Actuation Type
1. Manual handwheel synchronized linkage: Standard refinery, gas plant static installation
2. Pneumatic air actuator: Remote control room automated switching for FPSO, unmanned compressor stations
3. Electric actuator: Centralized DCS plant SCADA system integration
6. Critical Global Procurement Checklist for Overseas Senior Buyers (Transaction Search Keywords: API certified safety change over valve supplier China, industrial safety selector valve export documentation)
International oil & gas EPC contractors, plant procurement managers and end-user purchasing teams prioritize complete compliance documentation, verified performance data and global after-sales support during vendor qualification, the most frequently searched procurement questions for safety valve manifold suppliers:
6.1 Mandatory Standard Compliance Documentation Package
1. ASME B16.34 pressure-temperature rating conformity certificate
2. API 598 full hydrostatic & pneumatic seat leakage test report for each valve unit
3. EN 10204 3.1 / 3.2 material mill test certificate (MTC) for body, trim, fasteners
4. NACE MR0175 sulfide stress cracking compatibility certificate (sour H₂S gas projects)
5. API 622 / API 624 fugitive emission lab test report (bellows sealed variants)
6. API 607 fire safe valve construction certification (flammable HC hydrocarbon gas service)
7. Third-party witnessed factory acceptance test (FAT) protocol for large EPC project bulk orders
6.2 Verified Hydraulic Flow Performance Data (Non-Negotiable for Engineer Spec Approval)
Global engineering firms reject vendor submissions without quantifiable flow resistance data:
• Official CFD computational fluid dynamics manifold internal flow simulation report
• Certified flow resistance coefficient ζ datasheet per nominal size & pressure class
• Pressure drop calculation worksheet proving manifold loss <3% PSV set pressure (API RP 520 Part II mandatory rule)
• Full capacity matching calculation for paired pilot operated safety relief valve orifice size
6.3 Product Durability & Long-Term Reliability Validation Records
• 1,000-cycle thermal & cold media synchronized switching durability test report
• Offshore marine atmospheric corrosion accelerated aging test data for FPSO projects
• Continuous 3-year field service reference project contact information for site inspection verification
6.4 Manufacturer Qualification & Supply Chain Credentials
1. ISO 9001 full quality management system certification
2. API Q1 valve manufacturing quality system certification (top vendor differentiation factor for international oil majors)
3. Bulk order lead time guarantee matching global EPC project construction schedules
4. Full spare parts inventory for all safety change-over valve models, global door-to-door spare part delivery service
6.5 Global Technical After-Sales Support Terms
• Free pre-order process condition review & API standard sizing calculation service
• Remote online installation, commissioning and troubleshooting technical guidance
• Localized overseas agent technical service network for refinery / gas plant site support
• Custom material, flange size and actuator OEM modification capability for special project specifications
7. Quantifiable Economic ROI Analysis (High Conversion Keyword: cost saving safety change over valve refinery)
All metrics extracted from verified long-term overseas oil & gas plant operation datasets:
Economic Benefit Metric |
Measured Field Value |
Industry Explanation |
Unplanned plant shutdown downtime reduction |
83% per annual safety valve calibration cycle |
Eliminates multi-day full process halt required for single POSRV offline maintenance |
Integrated refinery operation & maintenance cost cut |
48% yearly total OPEX saving |
Removes costly depressurization, nitrogen purging, production restart labor & utility expense |
Maximum single switching cycle duration |
≤ 2 minutes |
Minimal process pressure fluctuation during safety valve exchange operation |
Annual permitted offline POSRV inspection frequency |
2 ~ 3 times without production interruption |
Meets global OSHA, API plant safety audit periodic testing requirements |
Average single refinery shutdown financial loss avoided |
USD 500,000 ~ 2,000,000 per maintenance event |
Based on crude oil, natural gas and petrochemical commodity throughput revenue data |
Safety change-over selector valve paired with pilot operated safety relief valve delivers irreplaceable operational, safety and financial advantages for all continuous-run industrial facilities processing HC hydrocarbon gas, LNG, steam, hydrogen and corrosive chemical media. As a top specified manifold solution by global process engineers and EPC specifiers, the assembly resolves the long-standing industry conflict between mandatory safety valve periodic calibration and non-stop production throughput requirements.
For technical sizing engineers, four core design pillars determine reliable manifold performance: API RP 520 compliant inlet pressure drop control, media-compatible wetted material selection, zero cross-flow synchronized switching mechanism and full international standard certification matching project site codes. For cross-border procurement managers, vendor qualification evaluation must prioritize complete test documentation, validated flow performance data, API Q1 manufacturing credentials and global technical after-sales support network.
Shanghai Xiazhao Valve Co., Ltd. specializes in R&D, customized manufacturing and export of API & ASME certified safety change-over manifolds and pilot operated safety relief valves for worldwide oil & gas refineries, natural gas midstream pipelines, LNG terminals, offshore FPSO, petrochemical complexes, power generation and fine chemical plants. Our engineering team provides free full-cycle technical support including process condition review, API standard flow sizing calculation, custom alloy material matching and FAT factory acceptance test coordination for global process engineers and senior procurement professionals.
Disclaimer: All technical parameters, project case data and flow calculation values referenced in this guide originate from verified overseas industrial plant design documents for technical reference only. Final safety change-over manifold and pilot operated safety relief valve sizing must be fully re-verified against client official project design basis and local regional regulatory codes.
Full Google SEO Keyword List (Naturally Embedded Within Article + End Meta Keyword Cluster)
Primary High-Volume Head Terms: safety change over valve, safety selector valve, dual pilot operated safety relief valve manifold, PRV changeover assembly, API safety valve manifold
Medium Competition Long-Tail Engineer Search Terms: pilot operated safety relief valve for HC hydrocarbon gas, API 520 manifold pressure drop calculation, high backpressure POSRV changeover valve, LNG cryogenic safety selector valve, refinery FCCU dual safety valve manifold, NACE sour gas safety change over valve, low fugitive emission bellows sealed safety valve manifold, offshore FPSO compact safety selector manifold
Procurement Transaction Intent Keywords: API certified safety change over valve manufacturer China, ASME B16.5 safety selector valve exporter, industrial pilot safety valve manifold bulk supply, OEM custom safety PRV changeover manifold, EPC project safety valve manifold vendor qualification
Informational How-To Search Queries: how to maintain pilot safety valve without plant shutdown, step by step safety change over valve sizing guide, API RP 520 manifold flow resistance calculation, safety selector valve cross flow prevention design
EN
