Table No.1

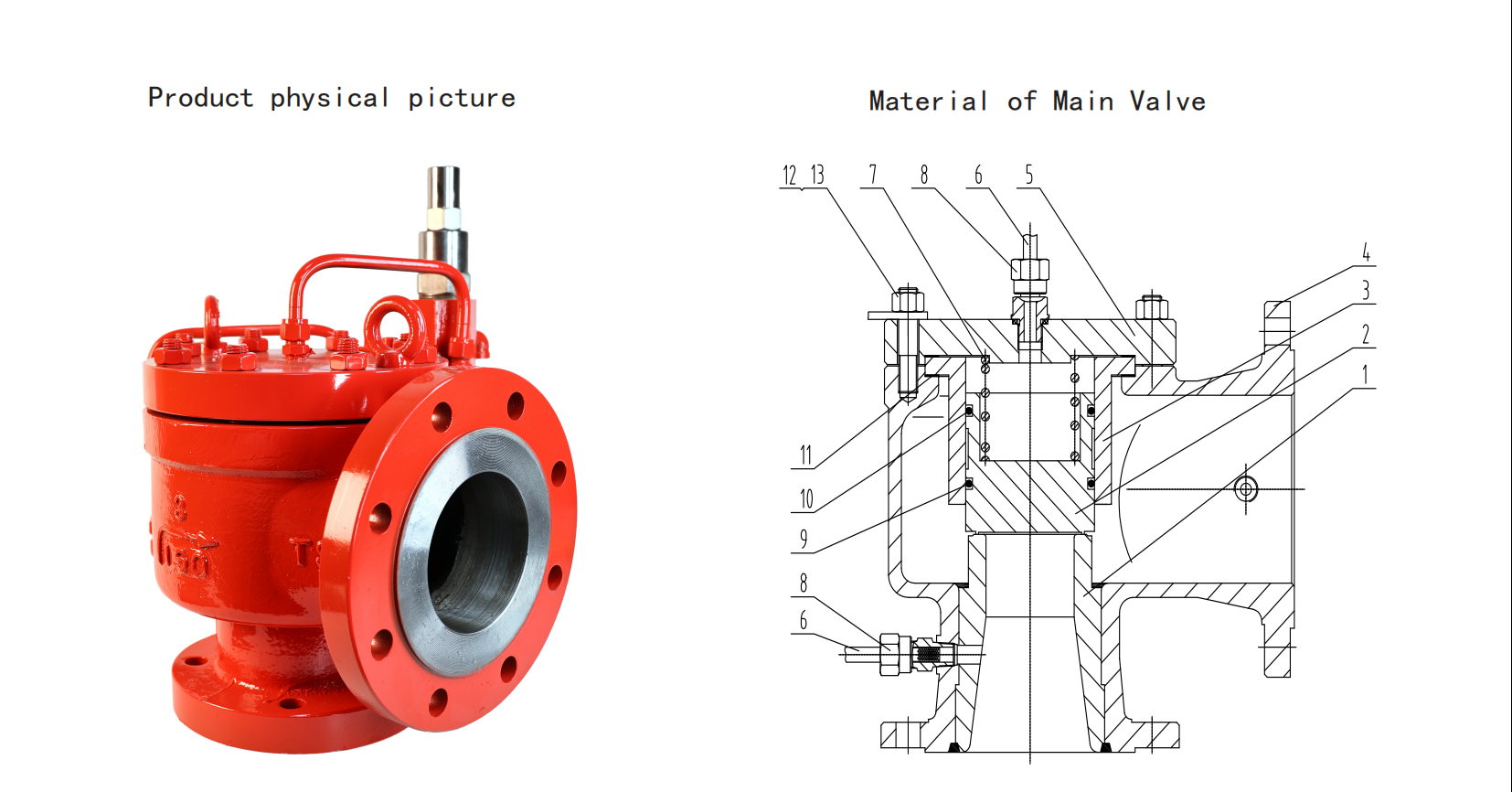

| Ref.No | Part Name | Sign of Materials | |||||
| C | S | SM | SL | L | CM | ||
| 1 | Nozzle | SS316 | SS316 | SS316 | SS316L | SS316 | Monel |
| 2 | Disc | SS316+F46 | SS316+F46 | SS316+F46 | SS316L+F46 | SS316+F46 | Monel+F46 |
| 3 | Guide | SS316 | SS316 | SS316 | SS316L | SS316 | Monel |
| 4 | Body | WCB | CF8 | CF8M | CF3M | LCB | WCB |
| 5 | Plate | A105 | SS304 | SS316 | SS316L | SS316 | Monel |
| 6 | Dipper Tube | SS316 | SS316 | SS316 | SS316L | SS316 | SS316L |
| 7 | Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 8 | Joint | SS304 | SS316 | SS316 | SS316L | SS304 | SS316L |
| 9 | Seal Ring | Fluororubber | Fluororubber | Fluororubber | Fluororubber | Fluororubber | Fluororubber |
| 10 | Seal Ring | Fluororubber | Fluororubber | Fluororubber | Fluororubber | Fluororubber | Fluororubber |
| 11 | Sealing gasket | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
| 12 | Bolt | A193-B7 | A193-B8 | A193-B8 | A193-B8 | A193-B8 | A193-B7 |
| 13 | Nut | A194-8 | A194-8 | A194-8 | A194-8 | A194-8 | A194-8 |
The information contained herein is subiject to change without notice.
